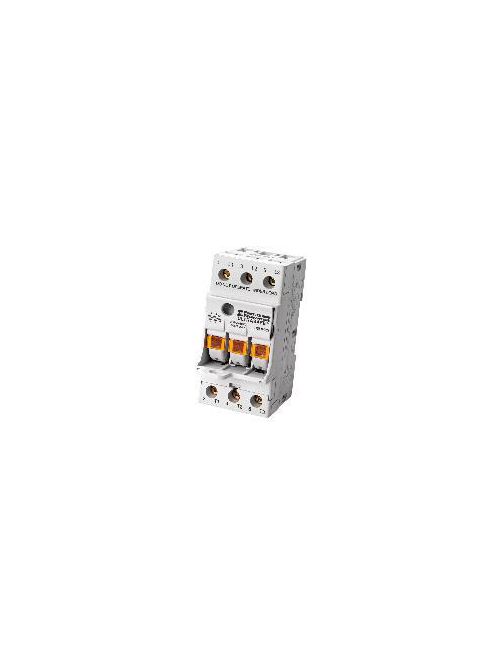

Ferraz Shawmut USFMCCI 600 VAC 30 Amp 3-Pole Fingersafe Fuse Holder
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$181.80/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # USFMCCI
North Coast Part # 590

Features

  • IP20 Finger-safe
  • Ability to padlock in Open position with 1/4" diameter shank
  • DIN-rail mount with tool free removal
  • Auxiliary contact option (1NO/1NC)
  • Compact footprint - 45mm width
  • Dedicated 3-pole fuse module
  • Optional visual blown fuse indication

Product Details

  • Applications: Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc…Applications requiring lock-out / tag-out procedures
  • Lead Free: Consult Technical Services
  • SCCR: 200, 100, kA
  • UL Certification: E52283 IZLT.E52283E52283 IZLT2.E52283
  • Connection Terminal Type: Pressure Plate
  • Wiring Range: #10 to 16 AWG, #10 to 6 AWG
  • Ampere Range: 0-30 A
  • ROHS Compliant: Consult Technical Services
  • Class: Midget Class CC Accessory
  • Standards: UL Listed to standard 4248-4, File E52283 CSA Certified C22.2, Class 6225, File 32169 UL Listed to standard 508, File E336456 UL Recognized Component to standard 4248-1, File E319605 UL Recognized Component to standard 4248-14, File E52283 CSA Certified C22.2, Class 6225, File 32169 IEC Compliant to 60269-2-1, 60947-3
  • CE conformity: Consult Technical Services
  • DC Voltage Range: 240 - 600 VDC
  • Materials Contact: Tin-plated Copper Copper
  • Enclosure: IP20
  • AC Voltage Range: 240 - 600 VAC
  • CSA Certification: 6225-01 032169_0_0006225-01 3211-37
  • Number of Poles: 3
  • Body Material: Latamid
  • Mounting: DIN-rail

CAD & Outline Drawings

CAD Drawings

Resources

Brochures

Data Sheets

Charts

Overview

UPC 78200135682
Family Brand Name Ferraz Shawmut
Item Long Description Mersen UltraSafe Fuse Modules (USFM) have a unique, compact design suited for use with 45mm wide IEC contactors. These modules also offer other features not found on other class CC and midget UltraSafe fuseholders such as an auxiliary contact option. When the auxiliary is wired to an adjacent contactor the load is dropped out by the contactor immediately once the fuse extractor handle is opened. Additionally, the fuse module features padlock capabilities, compact bus bars for line side terminations, and tool free removal from DIN rail. Yet the fuse modules still incorporate well known UltraSafe features such as IP20 protection, easy operating fuse extraction handles and an open fuse visual indication option.
GTiN 00782001356828
Voltage 240-600 Volt
Type UltraSafe
Connector Type Pressure Plate
Applications Primarily for Replacement of Circuit Breakers in Motor Circuits to Achieve Higher SCCR Circuits Up to 600 V for Motors, Control, Transformers, etc. Applications Requiring Lock-Out/Tag-Out Procedures
Mounting Type DIN-rail
Body Material Latamid
Fuse Type Class CC
Class CC
Contact Material Copper,Tin-Plated Copper
TC Connection Pressure Plate
Amperage 0-30 Amp
Number of Poles 3 Pole
