FERRAZ VSP30-2 MOV FUSE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$35.79/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # VSP30-2
North Coast Part # 1160254

Features

  • VSP fuses rated 600VAC, 200kA I.R.
  • Surge ratings of 5-100kA 8/20 μSec capacity

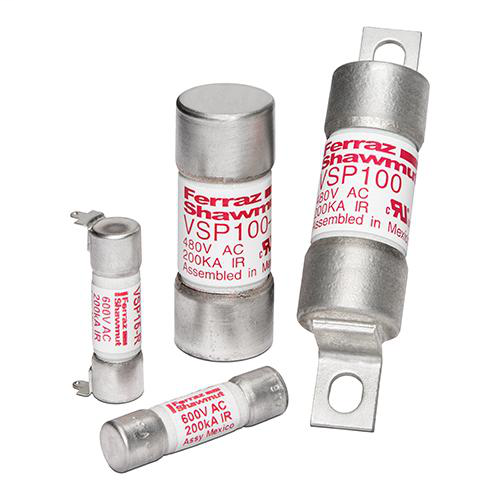

  • Various mounting configurations ferrules, blade, bolt-in, PC board mount

Certifications

  • ANSI/UL 248 Special Purpose MOV Fuse, File E60314

Specifications

  • Max Operating Temp: 80 °C
  • Max Storage Temp: 80 °C
  • Min Storage Temp: -25 °C
  • Ampere Rating: 0
  • Rated Voltage Ac Ul: 600 V
  • Ac Max I R Breaking Capacity I1: 200 kA
  • Product Diameter: 0.82 in
  • Country Of Origin: MX
  • Product Line: VSP MOV Fuses
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Ferrule
  • Mounting: Clip

Overview

UPC 78200130030
Family Brand Name Ferraz Shawmut
Item Long Description Mersen surge suppression fuses are specially designed to address the protection of SPD systems. Our surge suppression fuses have been specially designed to withstand 8/20 ?Sec surge pulses without opening, allowing the SPD system to react to the surge. All surge suppression fuses have a 8/20 ?Sec surge rating, not a continuous current rating. Under AC short circuit conditions these surge suppression fuses are very current limiting.
GTiN 00782001300302
Length 2.25 in
Type MOV Protection Fuses
Diameter 0.82 in
Terminal Type Ferrule
Applications Protection of surge protection devices (SPD) Coordination with other protection devices
Mounting Type Clip
Weight 0.11 lb
Pkg Qty 10
Insulation Material GMG
TC Connection Ferrule
Interrupt Rating 200 kA
Terminal Material Tin-Plated Copper
Rated Voltage AC 600 V
Voltage 600 Volt
Country of Origin Mexico
Max Operating Temperature 80 C
