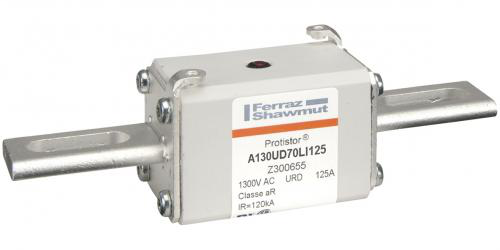

FERRAZ Z300655 A130URD70LI0125
$324.57/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Mersen
Mfg Catalog # Z300655
North Coast Part # 880658

Features

  • Multiple body sizes and terminals or blades combination
  • aR Class according to VDE 636-23 and IEC 60269-4
  • Very low I²t for improved semiconductor protection
  • Ultra fast acting
  • Current limiting
  • Superior cycling capability
  • Increased technical performances: higher ratings and reduction in volume and weight

Applications

  • Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.

Specifications

  • Sell Pack Height: 2.13 in
  • Product Weight: 0.83 lb
  • Product Length: 6 in
  • Mounting: Bolted
  • Clearing I2t At Rated Voltage: 10500 A²s
  • Product Width: 1.57 in
  • Ampere Rating: 125 A
  • AC Max I.R./Breaking Capacity: I1: 200 kA
  • Rated voltage AC IEC: 1250 V
  • Product Height: 1.95 in
  • Power Dissipation at Rated Current Value: 38 W
  • Melting I2t: 1310 A²s
  • Indication System: Yes
  • Catalogue No.: A130UD70LI125
  • Sell Pack Width: 5.24 in
  • Sell Pack Length: 6.18 in
  • Body/Insulating Material: Ceramic
  • Fuse Size: 70
  • Connection/Terminal Type: Slotted Blades
  • Sell Pack Quantity: 3 EACH
  • Indication System Type: Striker
  • Speed/Characteristic: aR
  • Connection/Terminal Material: Silver-Plated Copper
  • Rated voltage AC UL: 1300 V
  • Sell Pack Weight: 2.491 lb

Approvals & Standards

  • IEC 60269-4 Compliance
  • UL/CSA Recognized E76491
  • CCC GB 13539.4
  • Approvals & Standards

Overview

UPC 78200123816
Family Brand Name Ferraz Shawmut
GTiN 03605340331745
Length 6 in
Width 1.57 in
Terminal Type Slotted Blades
Mounting Type Bolted
Height 1.95 in
Weight 0.83 lb
Pkg Qty 3
Insulation Material Ceramic
Amperage 125 Amp
Indicator Striker
Terminal Material Silver-Plated Copper
Rated Voltage AC 1250 V
