MILB 124TB 200A 4T RT OU 10245
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # 124TB
North Coast Part # 69096


  • Brand Name: Milbank

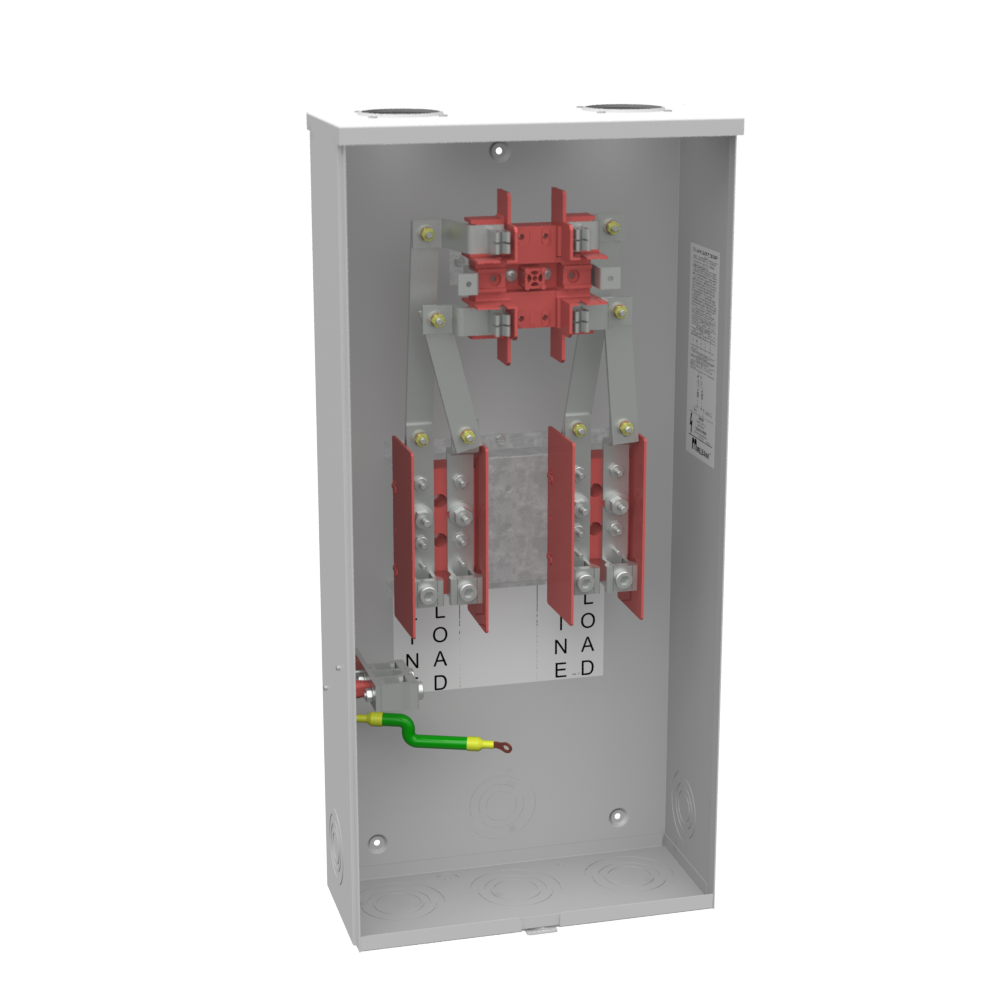

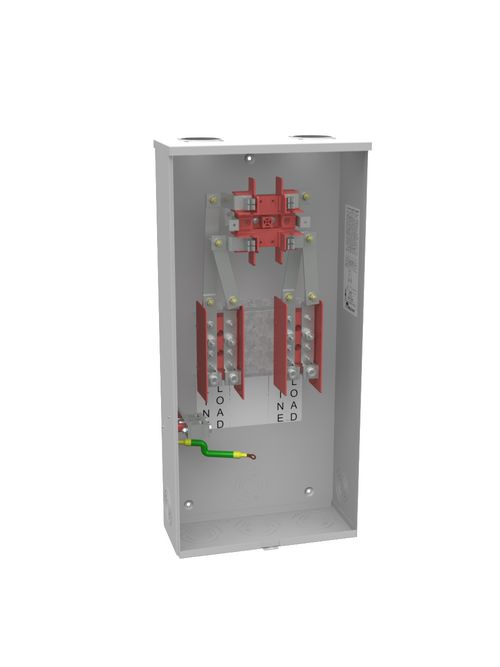

  • Type: Ring Type Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 600 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 6L x 14.28W x30H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Single Mechanical
  • Insulation: Fiberglass with Resin
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Link Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Twin Small Closing Plates
  • Line Side Wire Range: 1/0 - 250 kcmil
  • Load Side Wire Range: 1/0 - 250 kcmil
  • Number of Receptacles: 0
  • Height: 30 IN
  • Length: 6 IN
  • Width: 14.28 IN
  • UNSPSC Number: 39121102
  • Product Family Code: SS20
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.


UPC 78457210245
GTiN 00784572102453
Length 6 in
Width 14.28 in
Size 6L x 14.28W x 30H
Voltage 600 Volt
Type Ring Type Meter Socket
Insulation Type Fiberglass With Resin
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Meter Socket
Mounting Type Surface Mount
Height 30 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Twin Small Closing Plates
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
