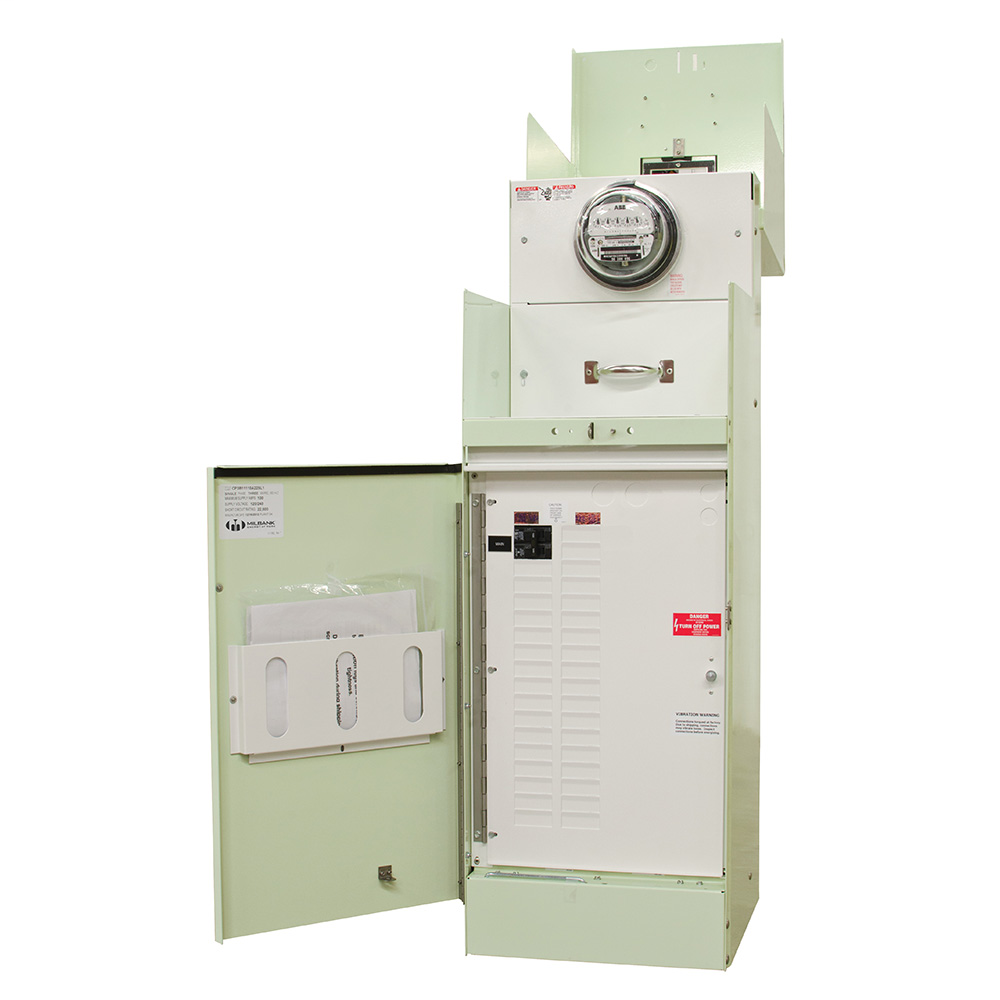

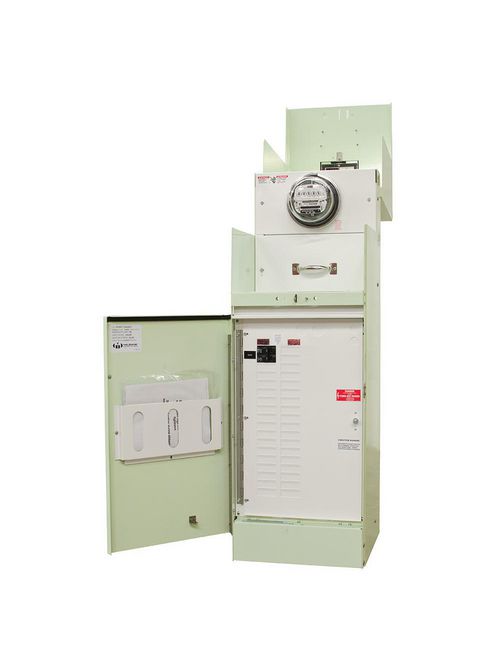

Milbank CP3B11115A22 Commercial Meter Pedestal
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # CP3B11115A22
North Coast Part # 151155


  • Brand Name: Milbank
  • Type: Ring Type Metered Commercial Pedestal
  • Application: Power Distribution
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 120/240 Volts Alternating Current
  • Amperage Rating: 100 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 17L x 16W x48H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 100 Ampere Main Breaker
  • Cable Entry: Underground
  • Terminal: Single Mechanical
  • Insulation: No Insulation
  • Mounting: Pad Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Link Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: No Hub Opening
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Number of Receptacles: 0
  • Height: 48 IN
  • Length: 17 IN
  • Width: 16 IN
  • UNSPSC Number: 39121102
  • Product Family Code: CPEU
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.


UPC 78457226969
GTiN 00784572269699
Length 17 in
Width 16 in
Size 17L x 16W x48H
Voltage 120 Volt
Type Ring Type Metered Commercial Pedestal
Insulation Type No Insulation
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Power Distribution
Mounting Type Pad Mount
Height 48 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 100 Amp
Hub Style No Hub Opening
Cable Entry Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
