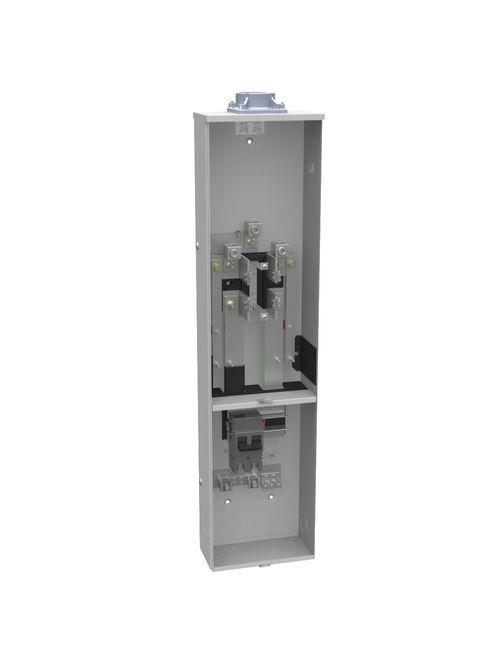

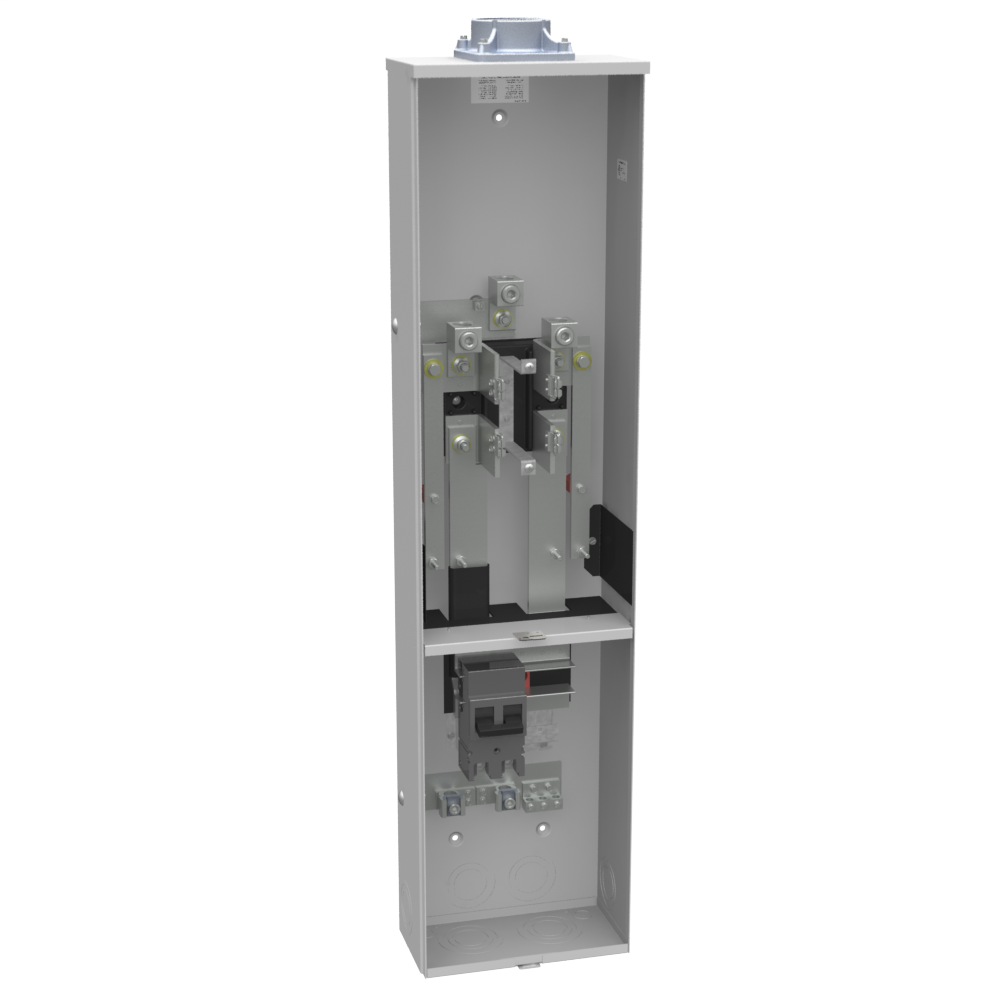

MILB M400-APS-BS 320A 4T RT OH LOAD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,495.57/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # M400-APS-BS
North Coast Part # 342679

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket With Main
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 320 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 6L x 11.5W x47H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Cable Entry: Overhead
  • Terminal: Single Mechanical
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Link Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: 3 Barrel Ground Lug
  • Hub/Closing Plate: Small Hub Opening
  • Number Branch Circuits: 1
  • Number of Receptacles: 0
  • Height: 47 IN
  • Length: 6 IN
  • Width: 11.5 IN
  • UNSPSC Number: 39121102
  • Product Family Code: HPWR
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Categories

Overview

UPC 78457232523
GTiN 00784572325234
Length 6 in
Width 11.5 in
Size 6L x 11.5W x 47H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Meter Socket With Main
Mounting Type Surface Mount
Height 47 in
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 320 Amp
Hub Style Small Hub Opening
Cable Entry Overhead
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
