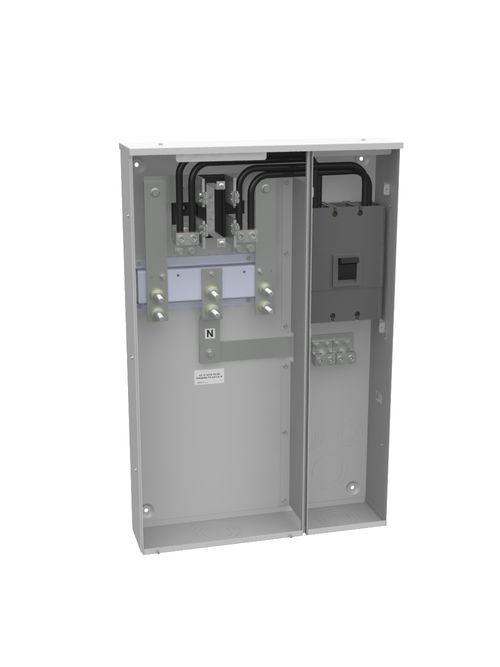

MILB M401-UG 400A 4T RT UG METER MA

Specifications

• Brand Name: Milbank
• Type: Ring Type Meter Socket
• Application: Meter Socket With Main
• Standard: UL Listed;Type 3R
• Voltage Rating: Up to 240 Volts Alternating Current
• Amperage Rating: 320 Continuous Ampere
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 5.93L x 24.88W x38H
• Number of Main Breakers: 1
• Main Breaker Size: One 400 Ampere Main Breaker
• Cable Entry: Underground
• Terminal: 1/2 Inch Stud Line Side
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 4 Terminal
• Bypass Provision: No Bypass
• Number of Meter Positions: 1 Position
• Equipment Ground: 2 Barrel Ground Lug
• Hub/Closing Plate: Plain Top
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 3/0 AWG - 300 kcmil
• Barrel Lock Provision: 7/16 Inch Knockout for Barrel Lock Provision
• Load Center: 12 Circuit Load Center
• Number Branch Circuits: 1
• Number of Receptacles: 1
• Receptacle Configuration: Four NEMA 5-20 Ground Fault
• Light Kit: Light Kit with Photocell
• Height: 38 IN
• Length: 5.93 IN
• Width: 24.88 IN
• UNSPSC Number: 39121102
• Product Family Code: HPWR
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
