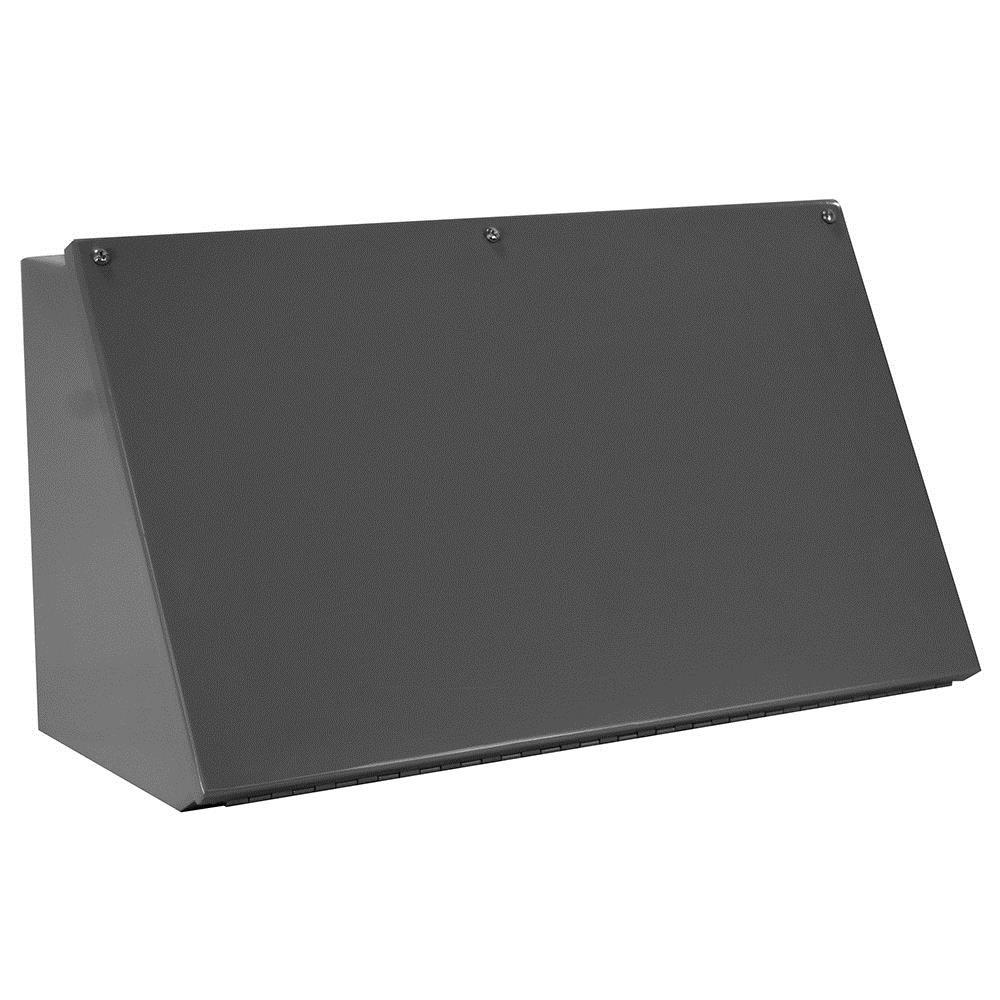

MILB MC16C30 CONSOLET 21726
Product image thumbnail 0
Product image thumbnail 1
$615.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # MC16C30
North Coast Part # 1328753

Specifications

  • Brand Name: Milbank
  • Type: Consolet
  • Application: Enclosure for Mounting Electrical Equipment
  • Standard: UL Listed
  • Number Of Outlet: 0
  • Material: Steel with Powder Coat Finish
  • Size: 30 In x 11.09 In x 16 In
  • Color: ANSI 61 Gray
  • Construction: Welded
  • Knockouts: No Knockouts
  • Mounting: Surface Mount
  • NEMA Rating: Type 12
  • Hinge Type: Continuous Hinge with Removable Pin
  • Top: Slope Top
  • Door: 1 Gasketed Door
  • Latch: Cover Secured with Captivated Screws
  • Support: Solid Piece of Metal with Continuous Seam Welds
  • Height: 16 IN
  • Length: 11.09 IN
  • Width: 30 IN
  • UNSPSC Number: 39121324
  • Product Family Code: ICON
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457221726
Item Long Description 16x11.09x30 Hinge Cover Type 12 Steel No Knockouts ANSI 61 Gray Consolet
GTiN 00784572217263
Length 11.09 in
Width 30 in
Size 30 In x 11.09 In x 16 In
Color Gray
Type Consolet
Material Steel With Powder Coat Finish
Applications Enclosure for Mounting Electrical Equipment
Mounting Type Surface Mount
Height 16 in
Standard UL Listed
Family Brand Name Milbank
Construction Welded
NEMA 12
Door Type 1 Gasketed Door
Number of Outlets 0
Cable Entry No Knockouts
Latch Type Cover Secured With Captivated Screws
