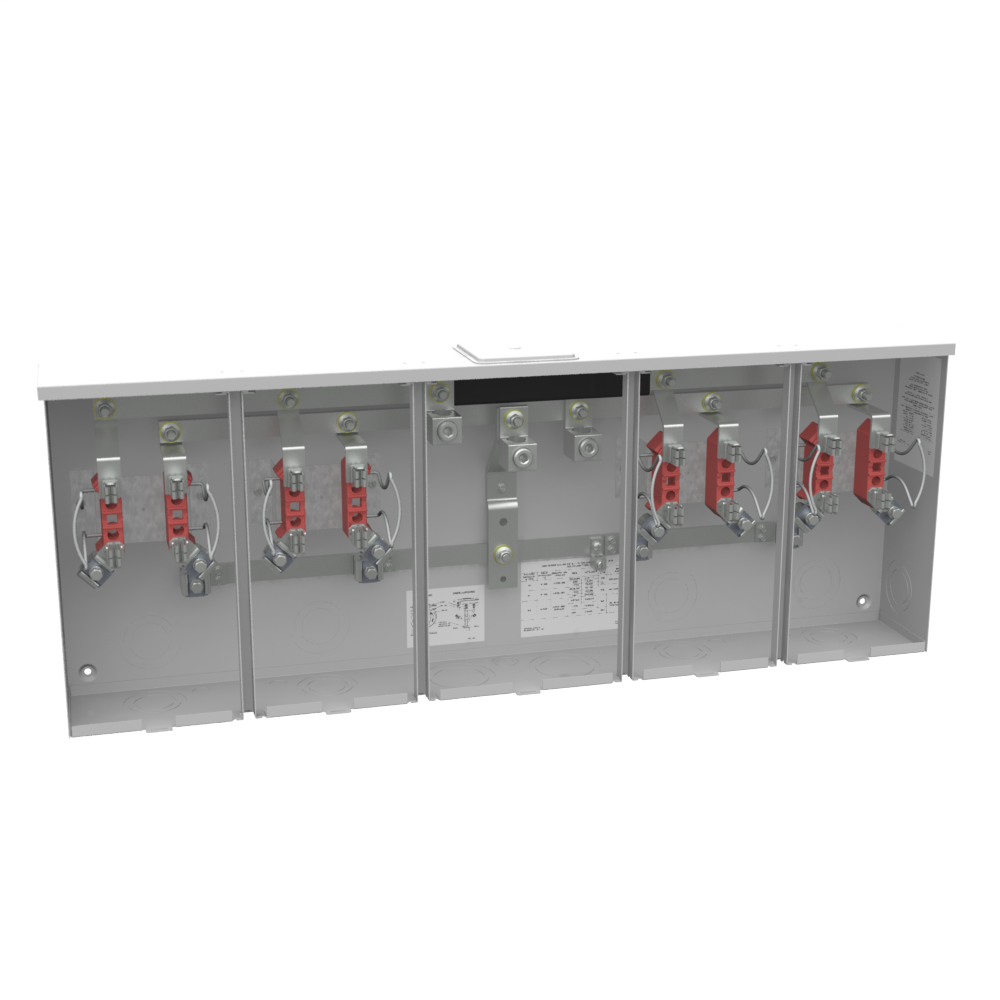

MILB U1254-X-K3 200A 4T RL 4P CTR W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U1254-X-K3
North Coast Part # 1008527


  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 300 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.125L x 42.688W x16H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground with Center Wireway
  • Terminal: Single Mechanical
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 4 Positions
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Large Closing Plate
  • Line Side Wire Range: 4 AWG - 600 kcmil or Two 1/0 AWG - 250 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number of Receptacles: 0
  • Height: 16 IN
  • Length: 5.125 IN
  • Width: 42.688 IN
  • UNSPSC Number: 39121102
  • Product Family Code: G200
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.



UPC 78457213367
GTiN 00784572133679
Length 5.125 in
Width 42.688 in
Size 5.125L x 42.688W x 16H
Voltage 300 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Meter Socket
Mounting Type Surface Mount
Height 16 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Large Closing Plate
Cable Entry Overhead Or Underground With Center Wireway
Enclosure Type 3R,G90 Galvanized Steel With Powder Coat Finish
