MILB U214MTB 100A 4T RT OU MAIN 134

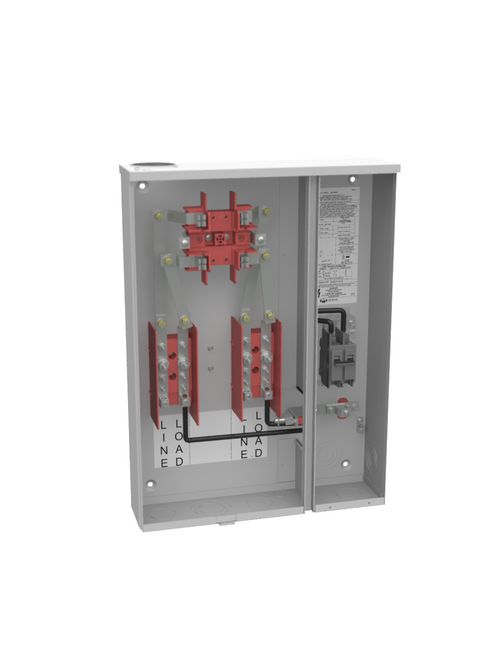

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$850.17/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U214MTB
North Coast Part # 212815

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket With Main
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 100 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.567L x 18.125W x24.75H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 100 Ampere Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Single Mechanical
  • Insulation: Fiberglass with Resin
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Link Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Twin Small Closing Plates
  • Line Side Wire Range: 14 AWG - 1/0
  • Load Side Wire Range: 4 - 1/0 AWG
  • Number of Receptacles: 0
  • Height: 24.75 IN
  • Length: 4.567 IN
  • Width: 18.125 IN
  • UNSPSC Number: 39121102
  • Product Family Code: SS1B
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

GTiN 00784572134775
Length 4.567 in
Width 18.125 in
Size 4.567L x 18.125W x 24.75H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Fiberglass With Resin
Material Steel
Terminal Type Single Mechanical
Applications Meter Socket With Main
Mounting Type Surface Mount
Height 24.75 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 100 Amp
Hub Style Twin Small Closing Plates
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
Product UPC 78457213477
