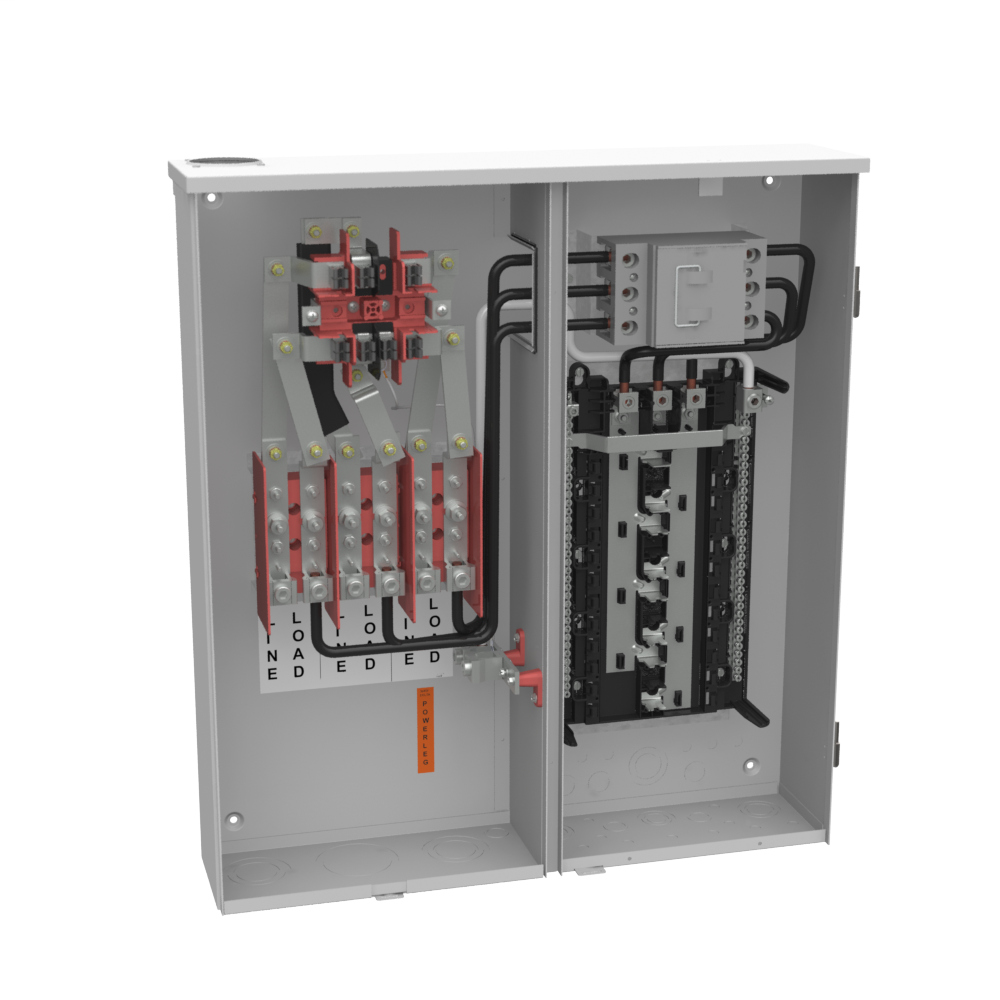

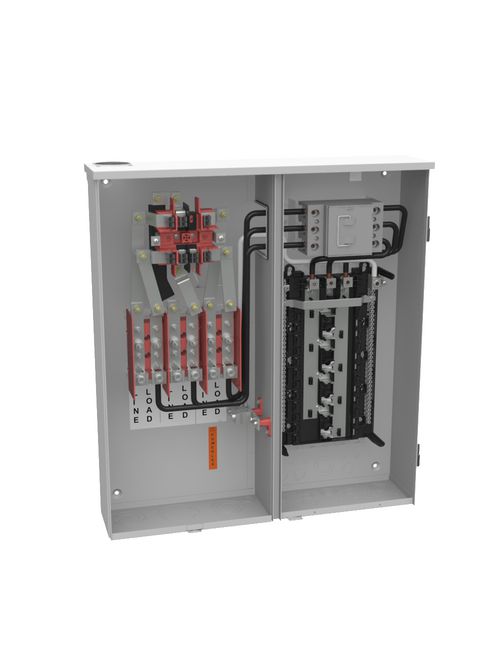

MILB U227MTBPL 200A 7T RT OH MAIN 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$2,816.29/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U227MTBPL
North Coast Part # 430384

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket With Main And Load Center
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 3 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.938L x 27W x30H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Single Mechanical
  • Insulation: Fiberglass with Resin
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 7 Terminal
  • Bypass Provision: Link Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: 6 AWG - 250 kcmil
  • Number of Receptacles: 0
  • Height: 30 IN
  • Length: 5.938 IN
  • Width: 27 IN
  • UNSPSC Number: 39121102
  • Product Family Code: SS2D
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457217882
GTiN 00784572178823
Length 5.938 in
Width 27 in
Size 5.938L x 27W x30H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Fiberglass With Resin
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Meter Socket With Main And Load Center
Mounting Type Surface Mount
Height 30 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 3
Number of Terminations 7
Amperage 200 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
