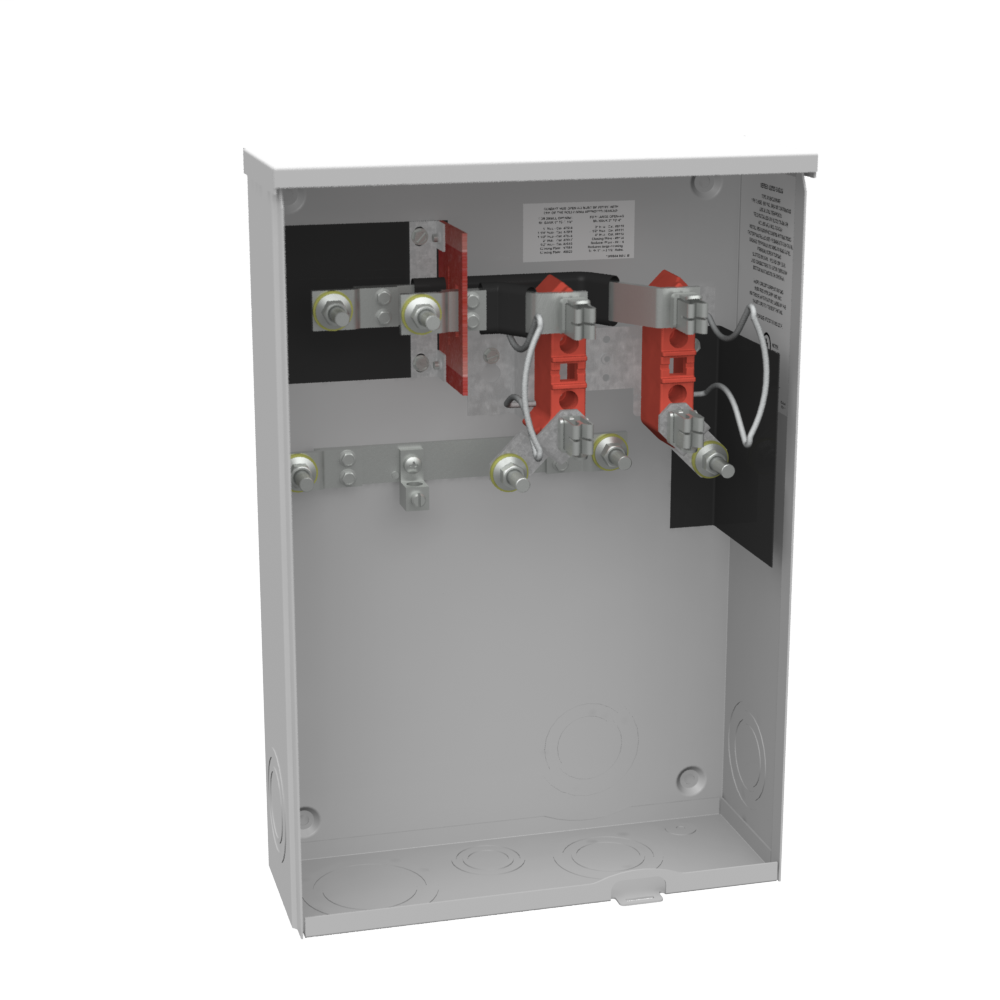

MILB U2986-O 200A 4T RL SWY UG 1366
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$257.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U2986-O
North Coast Part # 999185

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.5L x 13W x19H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Underground with Side Wireway
  • Terminal: 3/8 Inch Stud
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Triplex Ground
  • Hub/Closing Plate: Plain Top
  • Number of Receptacles: 0
  • Height: 19 IN
  • Length: 4.5 IN
  • Width: 13 IN
  • UNSPSC Number: 39121102
  • Product Family Code: 4T20
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Categories

Overview

UPC 78457213664
GTiN 00784572136649
Length 4.5 in
Width 13 in
Size 4.5L x 13W x 19H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type 3/8 Inch Stud
Applications Meter Socket
Mounting Type Surface Mount
Height 19 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Plain Top
Cable Entry Underground With Side Wireway
Enclosure Type 3R,G90 Galvanized Steel With Powder Coat Finish
