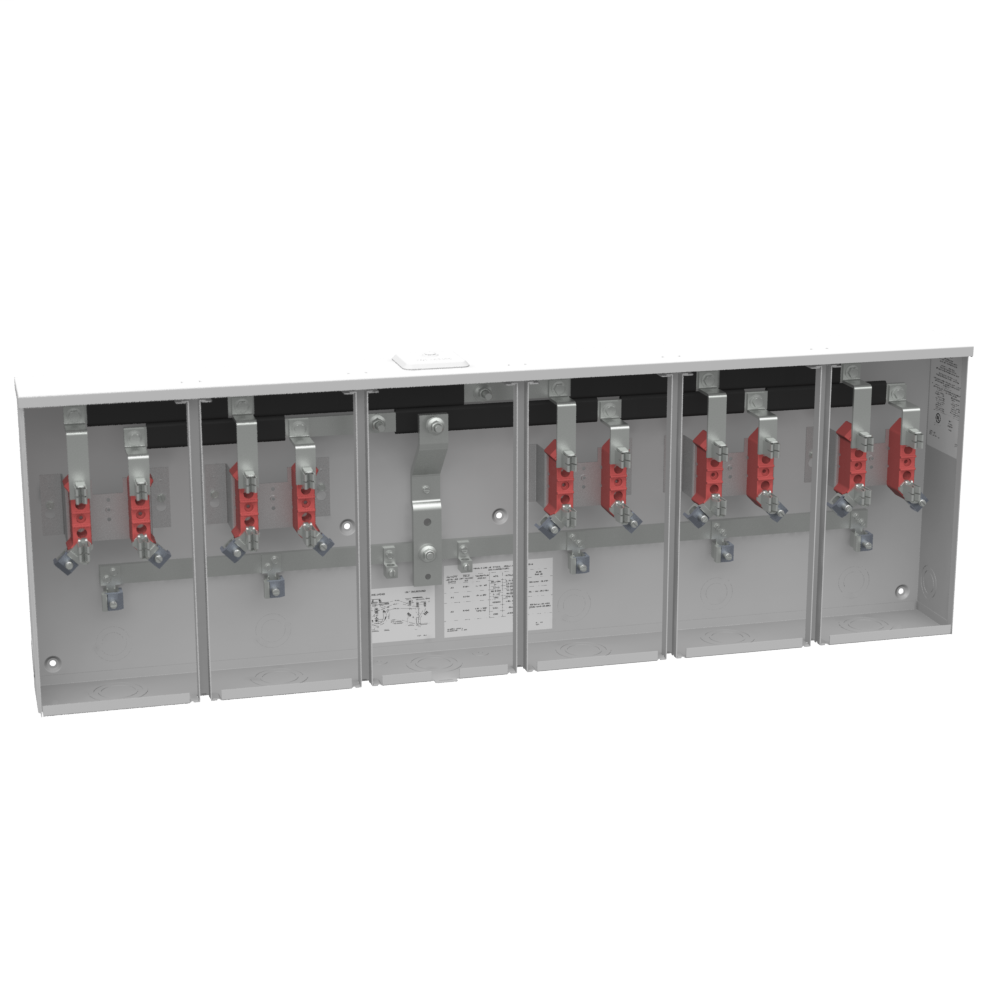

MILB U3525-XL-K2 125A 4T RT 5P CTR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$1,092.68/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U3525-XL-K2
North Coast Part # 264647

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 300 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.5L x 49.063W x16H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Double Mechanical
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 3 Positions
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: Two 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 - 2/0 AWG
  • Number of Receptacles: 0
  • Height: 16 IN
  • Length: 4.5 IN
  • Width: 49.063 IN
  • UNSPSC Number: 39121102
  • Product Family Code: G125
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457216419
GTiN 00784572164192
Length 4.5 in
Width 49.063 in
Size 4.5L x 49.063W x 16H
Voltage 300 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Double Mechanical
Applications Meter Socket
Mounting Type Surface Mount
Height 16 in
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 125 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
