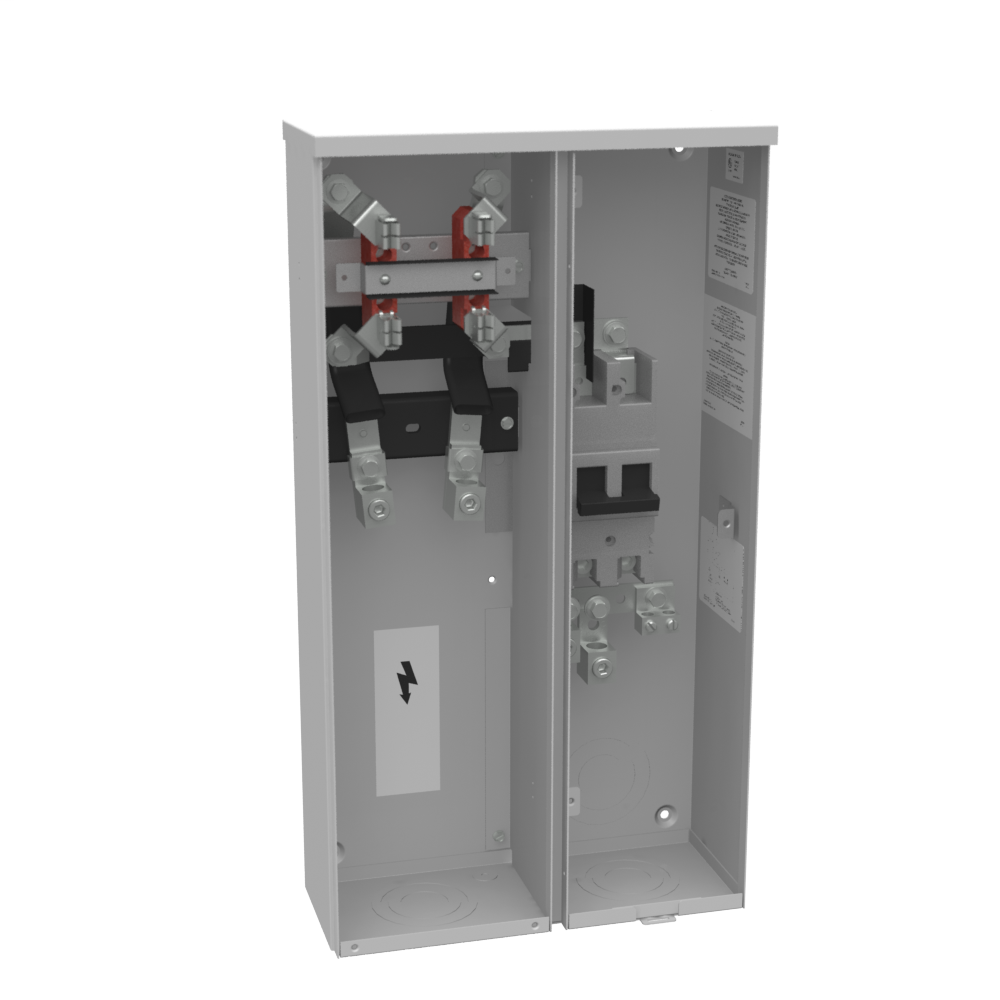

MILB U3584-O-200 200A 4T RT UG MAIN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$563.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U3584-O-200
North Coast Part # 65505

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket With Main
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.5L x 14.125W x6.507H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Cable Entry: Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: 2 Barrel Ground Lug
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Number of Receptacles: 0
  • Height: 6.507 IN
  • Length: 5.5 IN
  • Width: 14.125 IN
  • UNSPSC Number: 39121102
  • Product Family Code: MTMN
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Categories

Overview

UPC 78457213862
GTiN 00784572138629
Length 5.5 in
Width 14.125 in
Size 5.5L x 14.125W x6.507H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket With Main
Mounting Type Surface Mount
Height 6.507 in
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
