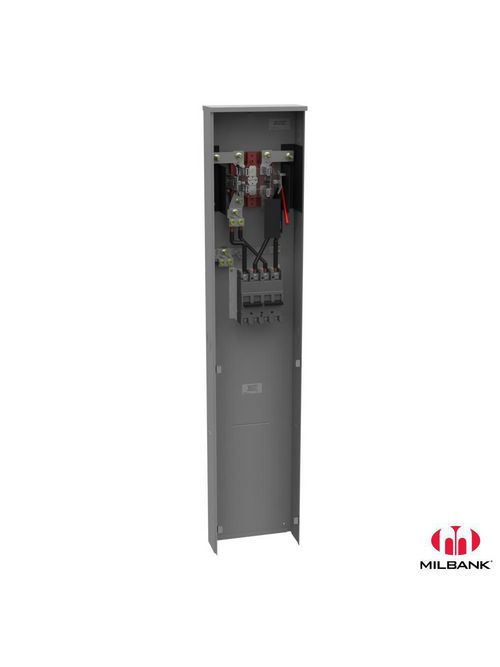

Milbank U3849-O-2/200 600 VAC 320 Amp 4-Terminal 1-Phase 1-Position Ringless Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5,234.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U3849-O-2/200
North Coast Part # 72584

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket With Main
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 320 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.844L x 13W x64H
  • Number of Main Breakers: 2
  • Main Breaker Size: Two 200 Ampere Main Breakers
  • Cable Entry: Underground
  • Terminal: 3/8 Inch Stud
  • Insulation: Glass Polyester
  • Mounting: Pedestal
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Lever Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: 2 Barrel Ground Lug
  • Hub/Closing Plate: Plain Top
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Number of Receptacles: 0
  • Height: 64 IN
  • Length: 4.844 IN
  • Width: 13 IN
  • UNSPSC Number: 39121102
  • Product Family Code: UPHB
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457213905
Item Long Description 4 TERM RNGLS PLAIN TOP LVR BYPS 2-200 AMP MN BRKR SGL PED DIR BURY
GTiN 00784572139053
Length 4.844 in
Width 13 in
Size 4.844L x 13W x 64H
Voltage 240 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type 3/8 Inch Stud
Applications Meter Socket With Main
Mounting Type Pedestal
Height 64 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 320 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
