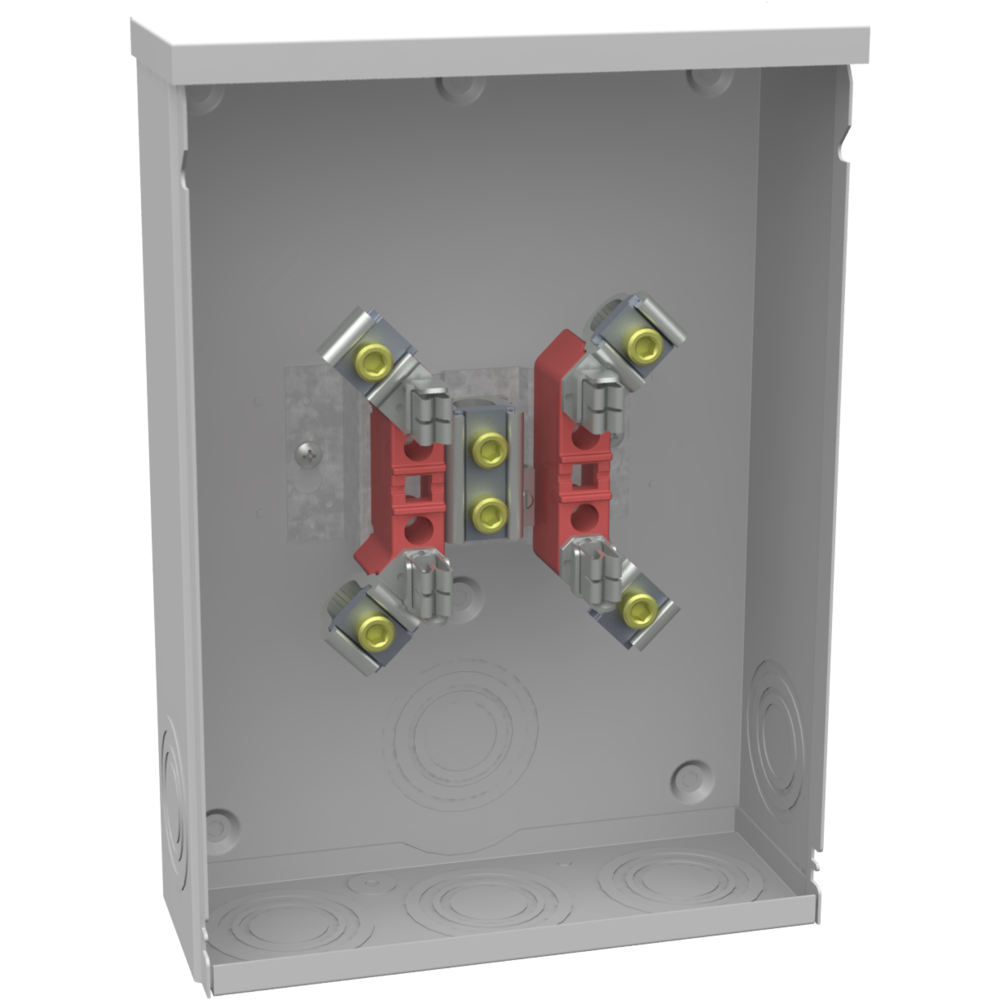

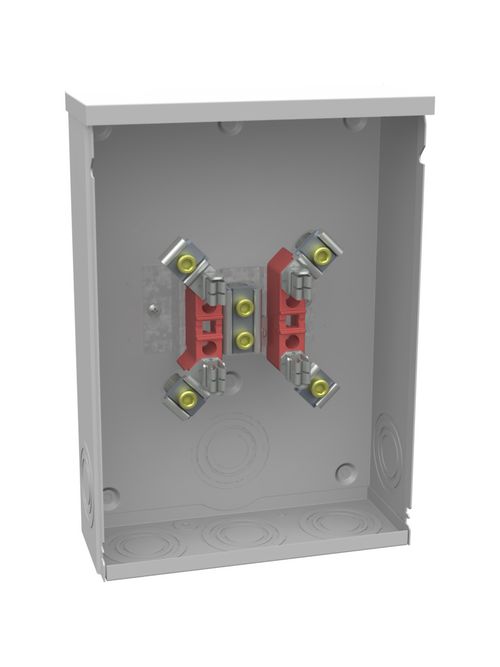

MILB U4518-O-W 200A 4T RT UG 21016
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$63.68/ea
In Stock | 46 available at 10 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U4518-O-W
North Coast Part # 11285

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.125L x 11W x15.5H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Triplex Ground
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number of Receptacles: 0
  • Height: 15.5 IN
  • Length: 4.125 IN
  • Width: 11 IN
  • UNSPSC Number: 39121102
  • Product Family Code: 4T20
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
> View Substitutes (1)

Overview

UPC 78457221016
GTiN 00784572210165
Length 4.125 in
Width 11 in
Size 4.125L x 11W x 15.5H
Voltage 600 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket
Mounting Type Surface Mount
Height 15.5 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 200 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure Type 3R,G90 Galvanized Steel With Powder Coat Finish
