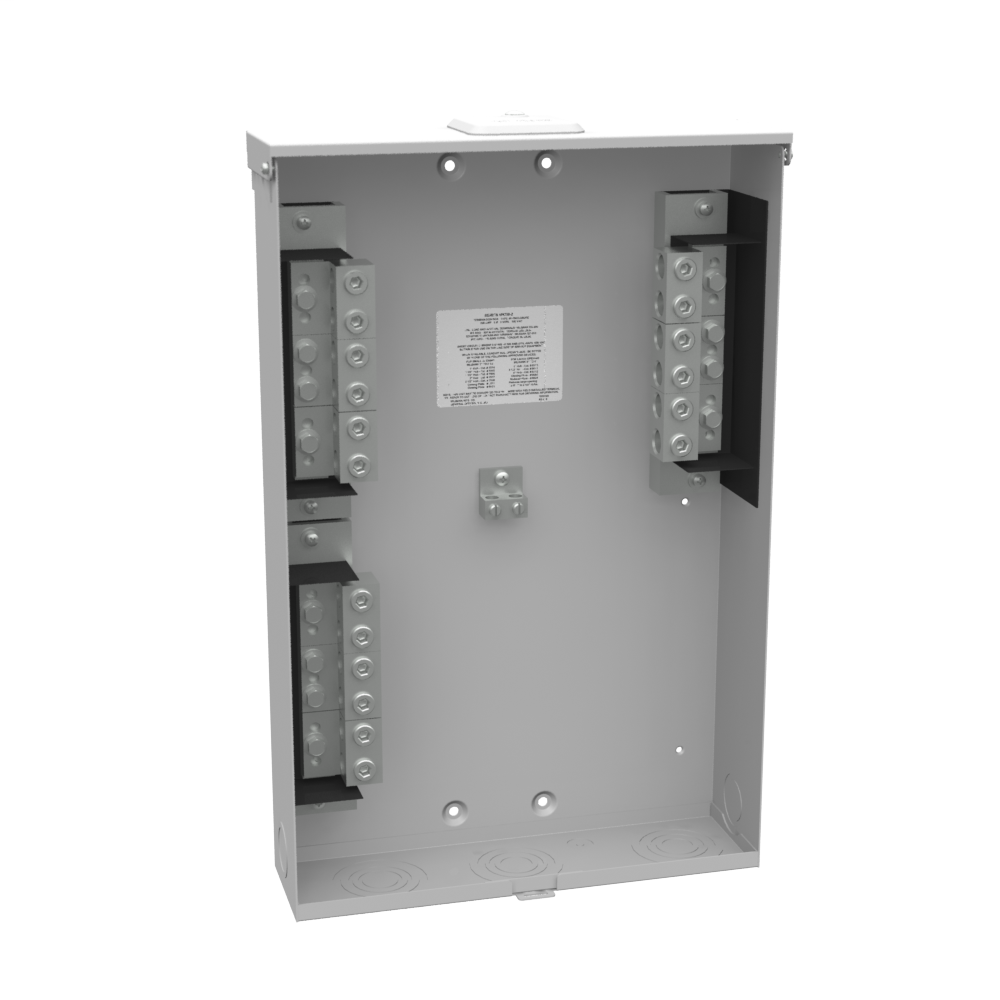

MILB U4540-XL 200A 1PH 600V TERMINA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$355.54/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U4540-XL
North Coast Part # 331660

Specifications

  • Brand Name: Milbank
  • Type: Line to Load Distribution
  • Application: Termination Cabinet
  • Standard: UL Listed;Type 3R
  • Number of Conductors: 6
  • Conductor Material: Copper and Aluminum
  • Size: 4.125L x 14.813W x 23H
  • Amperage Rating: Up to 200 Ampere
  • Voltage Rating: Up to 600 Volts Alternating Current
  • Temperature Rating: No Temperature Rating
  • Insulation Material: Polypropylene
  • Jacket Material: No Jacket Material
  • Color: ANSI 61 Gray
  • Wire Connection: 6 AWG to 350 kcmil Line Side Lugs and 6 AWG to 350 kcmil Load Side Lugs
  • Material: G90 Galvanized Steel
  • Finish: Powder Coat Finish
  • Number of Meter Positions: 1 Position
  • Phase: 1
  • Short Circuit Rating: 10000 Ampere
  • Height: 23 IN
  • Length: 4.125 IN
  • Width: 14.813 IN
  • UNSPSC Number: 26121541
  • Product Family Code: TCAN
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457223056
GTiN 00784572230569
Length 4.125 in
Finish Powder Coat Finish
Width 14.813 in
Size 4.125L x 14.813W x 23H
Color ANSI 61 Gray
Voltage 600 Volt
Type Line To Load Distribution
Material G90 Galvanized Steel
Number of Conductors 6
Applications Termination Cabinet
Height 23 in
Standard Type 3R,UL Listed
Connection Type 3 Positionss 6 AWG To 350 Kcmil Line Side Lugs,3 Positionss 6 AWG To 350 Kcmil Load Side Lugs
Family Brand Name Milbank
Insulation Material Polypropylene
Conductor Material Copper and Aluminum
Construction G90 Galvanized Steel
Number of Phases 1
TC Connection 6 AWG to 350 kcmil Line Side Lugs and 6 AWG to 350 kcmil Load Side Lugs
Amperage 200 Amp
Short Circuit Current 10000 A
Jacket Material No Jacket Material
Construction Features Type 3R,G90 Galvanized Steel
