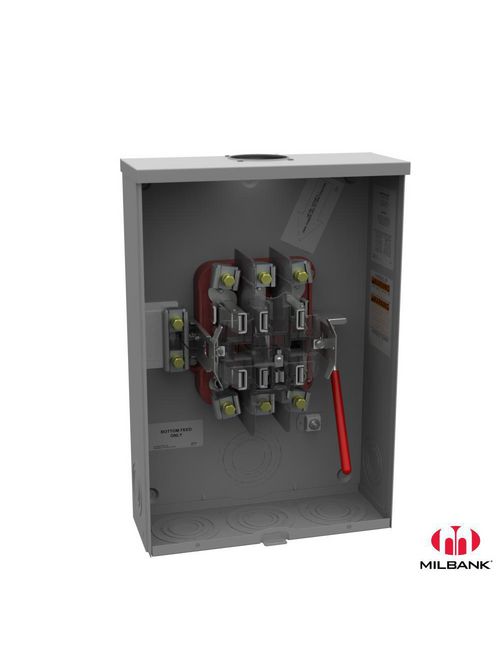

Milbank U4701-RL-QG 600 VAC 200 Amp 7-Terminal 3-Phase 1-Position Ringless Overhead/Underground Meter Socket

Specifications

• Brand Name: Milbank
• Type: Ringless Meter Socket
• Application: Meter Socket
• Standard: UL Listed;Type 3R
• Voltage Rating: 600 Volts Alternating Current
• Amperage Rating: 200 Continuous Ampere
• Phase: 3 Phase
• Frequency Rating: 60 Hertz
• Size: 4.844L x 13W x19H
• Number of Main Breakers: 0
• Main Breaker Size: No Main Breaker
• Cable Entry: Overhead or Underground
• Terminal: Lay in
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 7 Terminal
• Bypass Provision: Lever Bypass
• Number of Meter Positions: 1 Position
• Equipment Ground: Quadplex Ground
• Hub/Closing Plate: Small Hub Opening
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number of Receptacles: 0
• Height: 19 IN
• Length: 4.844 IN
• Width: 13 IN
• UNSPSC Number: 39121102
• Product Family Code: HD7T
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
