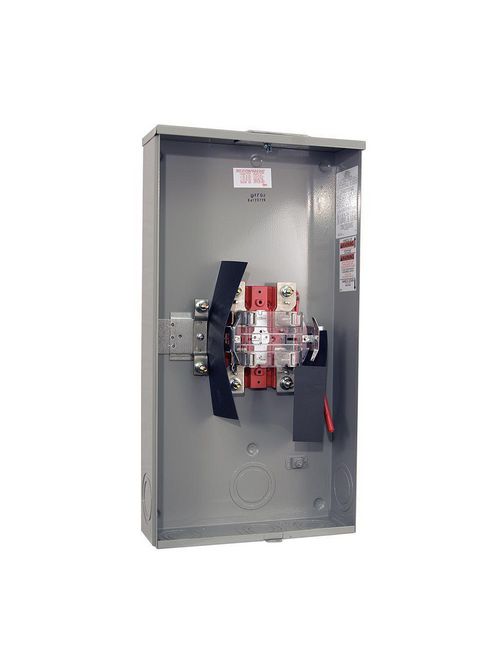

Milbank U4702-X 600 VAC 320 Amp 4-Terminal 1-Phase 1-Position Ringless Overhead/Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$539.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U4702-X
North Coast Part # 425953

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 320 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.844L x 15W x28.25H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: 3/8 Inch Stud
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Lever Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Large Closing Plate
  • Number of Receptacles: 0
  • Height: 28.25 IN
  • Length: 4.844 IN
  • Width: 15 IN
  • UNSPSC Number: 39121102
  • Product Family Code: 4T32
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457223321
GTiN 00784572233218
Length 4.844 in
Width 15 in
Size 4.844L x 15W x28.25H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type 3/8 Inch Stud
Applications Meter Socket
Mounting Type Surface Mount
Height 28.25 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 320 Amp
Hub Style Large Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
