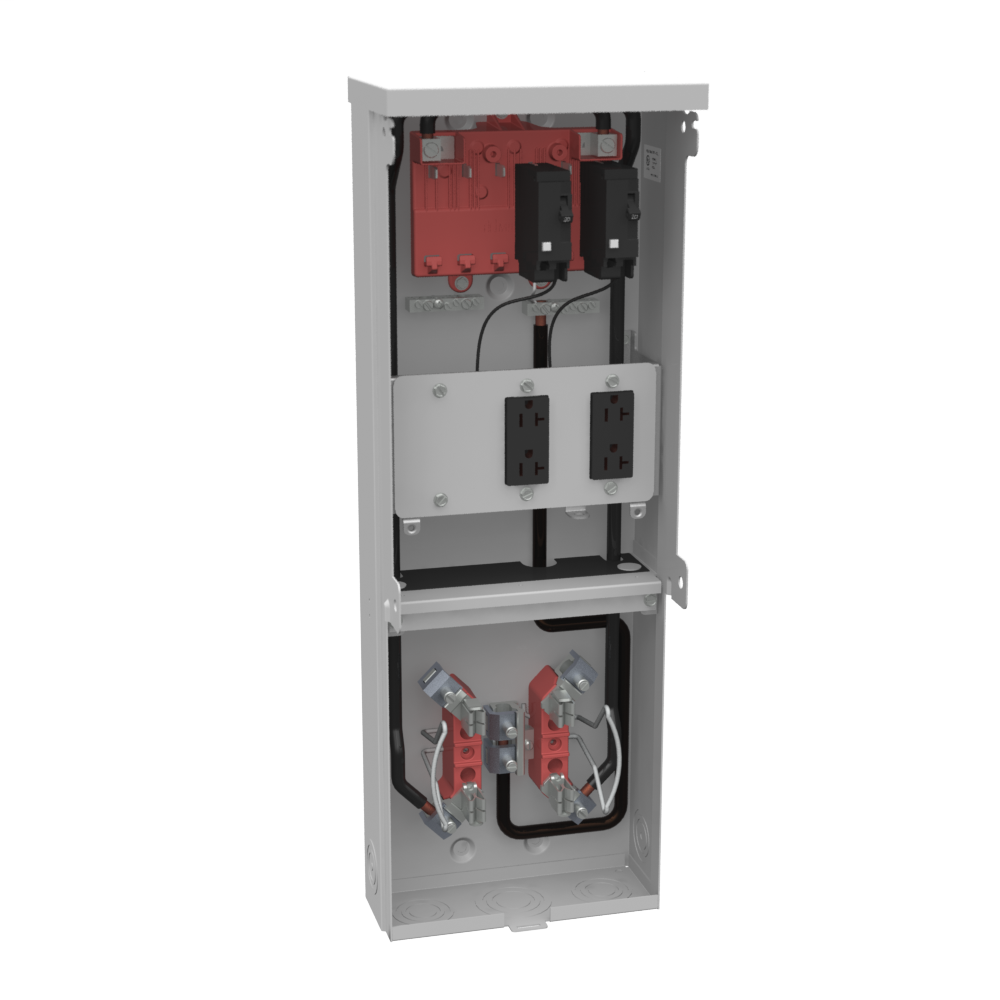

MILB U4908-O-11GR 100A RL MTR P/O 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$522.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U4908-O-11GR
North Coast Part # 428470

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Special Features: Two Single Pole 20 Ampere Breakers
  • Application: Temporary Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.188L x 9W x25.938H
  • Number of Main Breakers: 2
  • Main Breaker Size: Two Single Pole 20 Ampere Breakers
  • Cable Entry: Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Plain Top
  • Number Branch Circuits: 4
  • Number of Receptacles: 2
  • Receptacle Configuration: Two NEMA 5-20 Ground Fault
  • Height: 25.938 IN
  • Length: 5.188 IN
  • Width: 9 IN
  • UNSPSC Number: 39121102
  • Product Family Code: HPWR
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457227195
GTiN 00784572271951
Length 5.188 in
Width 9 in
Size 5.188L x 9W x 25.938H
Voltage 240 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Temporary Power
Mounting Type Surface Mount
Height 25.938 in
Cable Size 350 MCM
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 125 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
