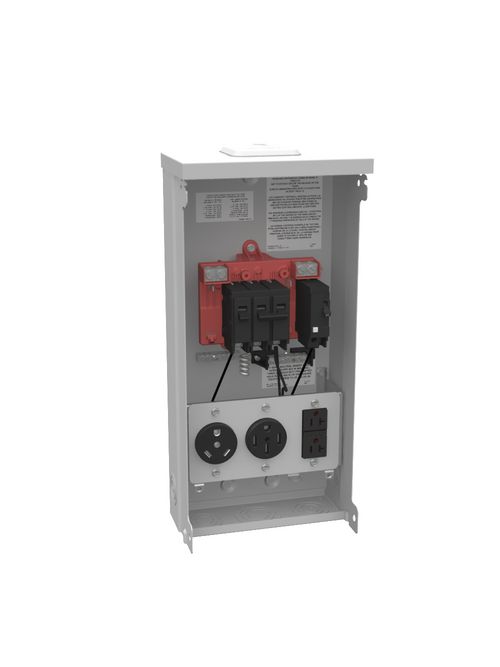

MILB U5000-XL-75GB 125A UNMET PO TT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$610.56/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5000-XL-75GB
North Coast Part # 490004

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Ground Fault Breaker
  • Application: RV Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.19L x 8.88W x19.25H
  • Number of Main Breakers: 3
  • Main Breaker Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampere Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Pedestal
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 14 - 2/0 AWG
  • Number Branch Circuits: 2
  • Number of Receptacles: 3
  • Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
  • Height: 19.25 IN
  • Length: 5.19 IN
  • Width: 8.88 IN
  • UNSPSC Number: 39121102
  • Product Family Code: POUM
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457231918
GTiN 00784572319189
Length 5.19 in
Width 8.88 in
Size 5.19L x 8.88W x 19.25H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications RV Power
Mounting Type Pedestal
Height 19.25 in
Cable Size 13 AWG
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 125 Amp
Hub Style Plain Top
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
