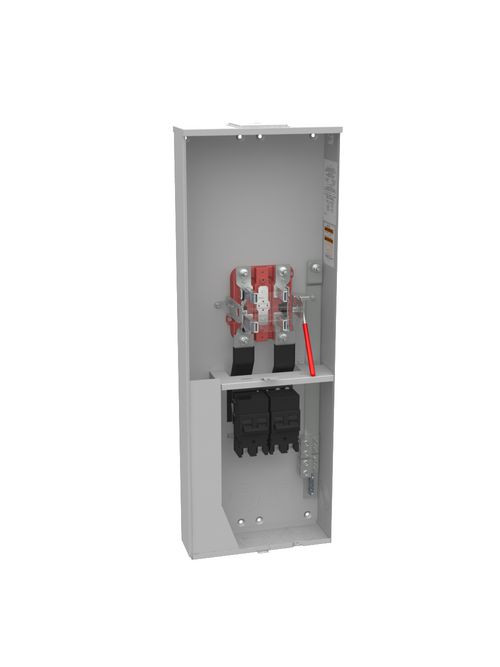

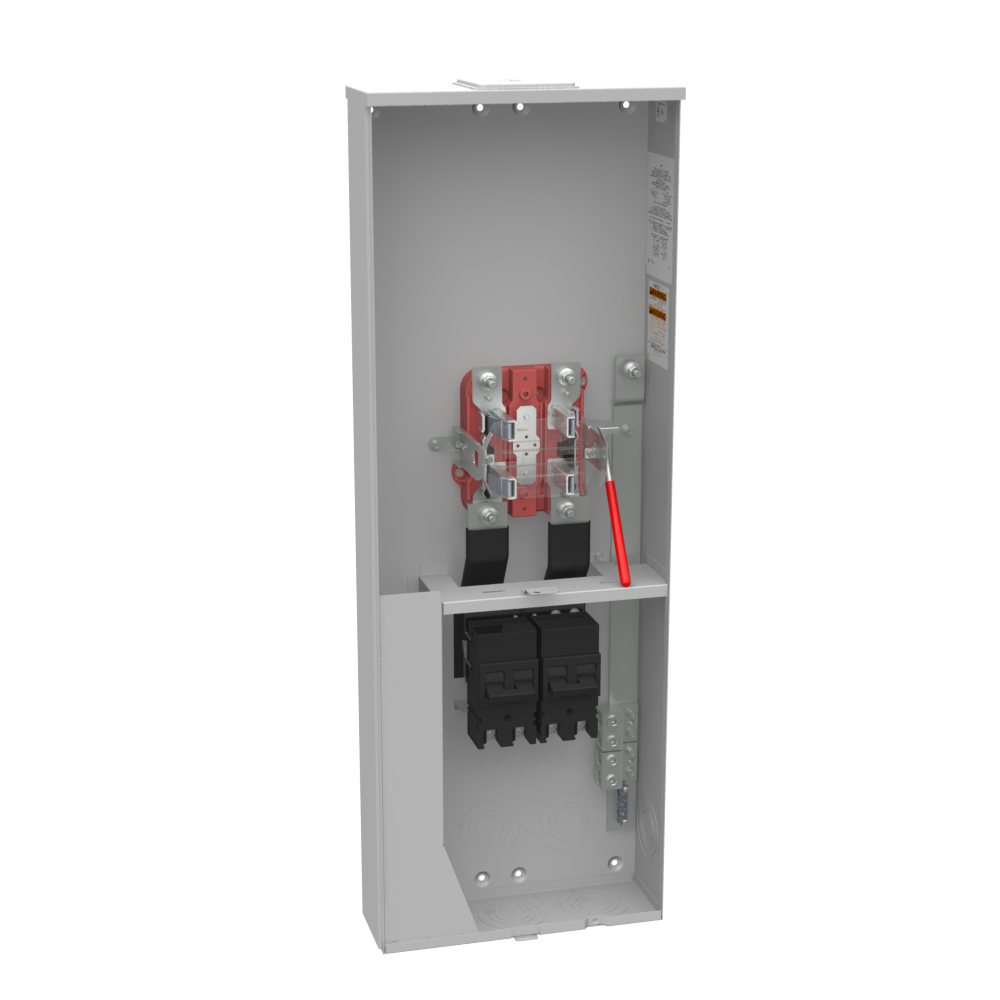

MILB U5059-X-2/200 320A 4T RL OU HD
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$3,355.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5059-X-2/200
North Coast Part # 348457

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket With Main
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 320 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.844L x 15W x42.438H
  • Number of Main Breakers: 2
  • Main Breaker Size: Two 200 Ampere Main Breakers
  • Cable Entry: Overhead or Underground
  • Terminal: 3/8 Inch Stud
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: Lever Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Large Closing Plate
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Number of Receptacles: 0
  • Height: 42.438 IN
  • Length: 4.844 IN
  • Width: 15 IN
  • UNSPSC Number: 39121102
  • Product Family Code: MMHD
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457231053
GTiN 00784572310537
Length 4.844 in
Width 15 in
Size 4.844L x 15W x 42.438H
Voltage 240 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type 3/8 Inch Stud
Applications Meter Socket With Main
Mounting Type Surface Mount
Height 42.438 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 320 Amp
Hub Style Large Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
