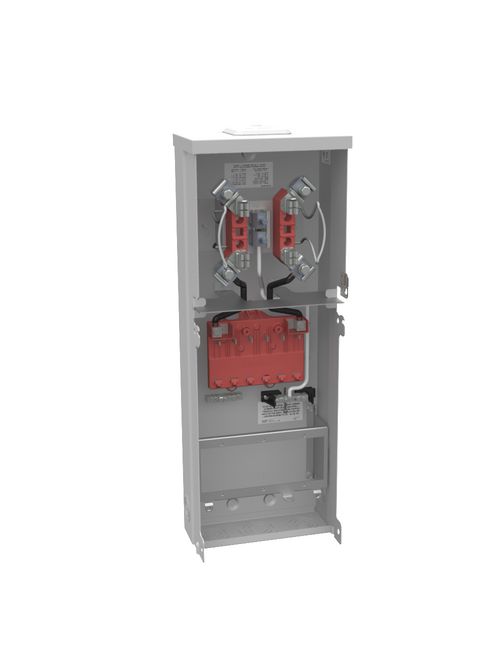

MILB U5101-XL 125A RL MTR P/O 27199
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5101-XL
North Coast Part # 333591


  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker; Florida Meter Group
  • Application: RV Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.188L x 8.875W x25H
  • Number of Main Breakers: 0
  • Main Breaker Size: Breaker Provision
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 6
  • Number of Receptacles: 0
  • Height: 25 IN
  • Length: 5.188 IN
  • Width: 8.875 IN
  • UNSPSC Number: 39121102
  • Product Family Code: POMT
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.


GTiN 00784572271999
Length 5.188 in
Width 8.875 in
Size 5.188L x 8.875W x 25H
Voltage 240 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material Steel
Terminal Type Lay In
Applications RV Power
Mounting Type Surface Mount
Height 25 in
Cable Size 350 MCM
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 125 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
Product UPC 78457227199
