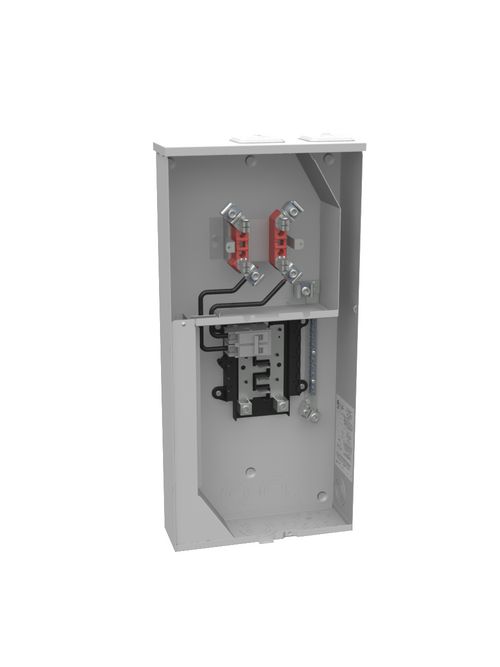

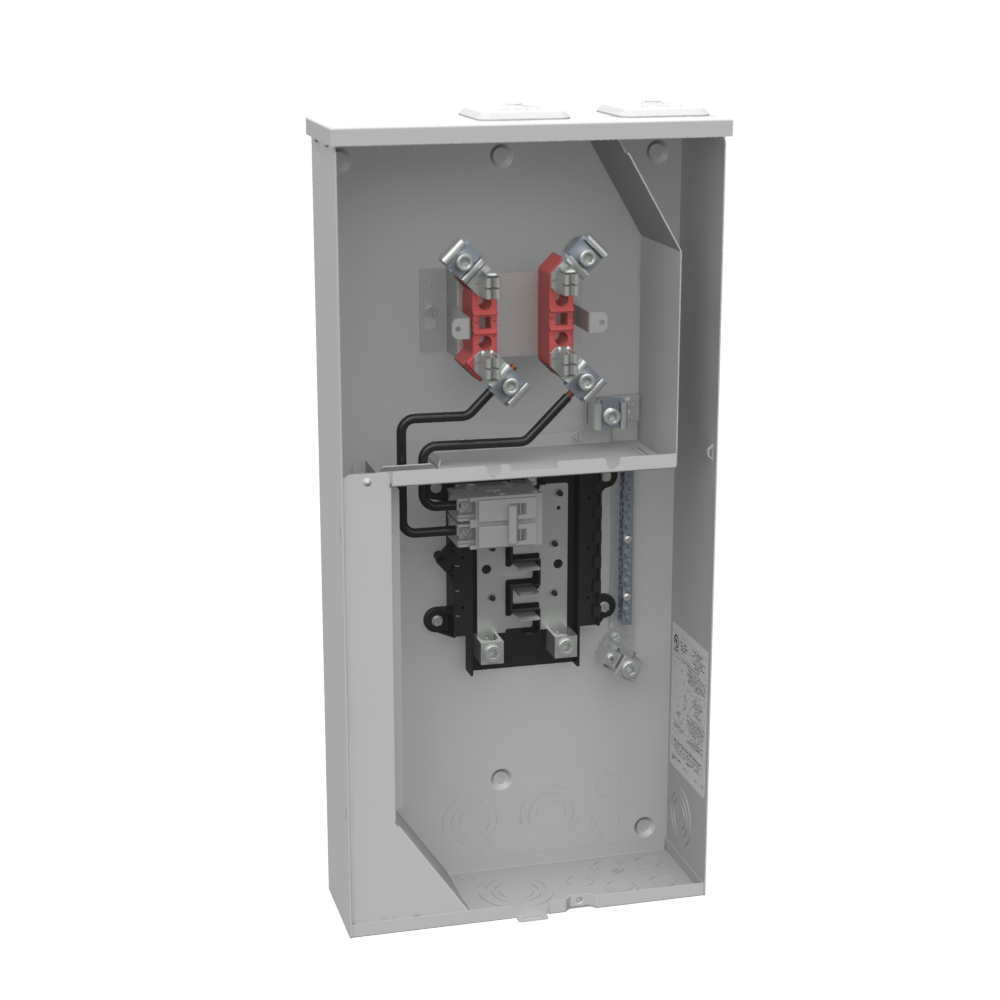

MILB U5169-XTL-100 200A RT OU MAIN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5169-XTL-100
North Coast Part # 427119


  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket With Main And Load Center
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.5L x 14.125W x30H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 100 Ampere Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Twin Small Closing Plates
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 8
  • Number of Receptacles: 0
  • Height: 30 IN
  • Length: 4.5 IN
  • Width: 14.125 IN
  • UNSPSC Number: 39121102
  • Product Family Code: MTMN
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.


UPC 78457247545
Item Long Description 4 TERM RNGTP 2 SML CLS PLTS 1-100 AMP MN BRKR 10 BRANCH CKT
GTiN 00784572475458
Length 4.5 in
Width 14.125 in
Size 4.5L x 14.125W x 30H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket With Main And Load Center
Mounting Type Surface Mount
Height 30 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 200 Amp
Hub Style Twin Small Closing Plates
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
