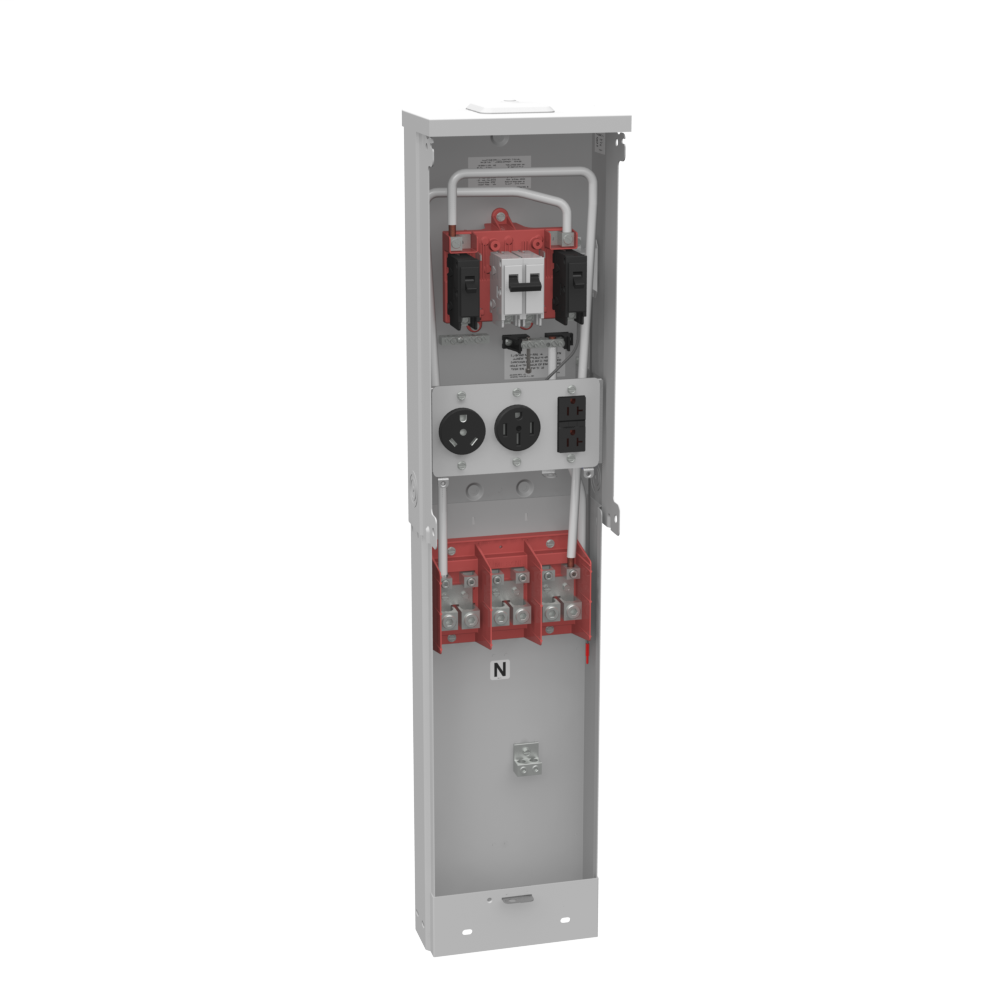

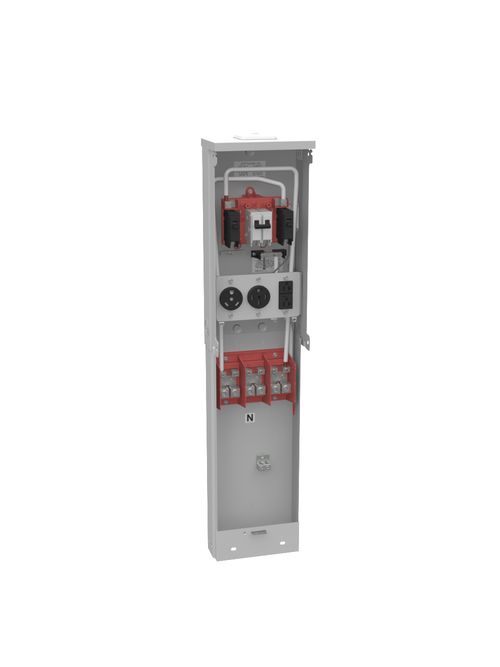

MILB U5210-XL-75-LPC 125A UNMET PDM

Specifications

• Brand Name: Milbank
• Type: Unmetered Power Supply
• Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker
• Application: RV Power
• Standard: UL Listed;Type 3R
• Voltage Rating: Up to 240 Volts Alternating Current
• Amperage Rating: 125 Continuous Ampere
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 5.188L x 8.656W x40.5H
• Number of Main Breakers: 3
• Main Breaker Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampere Breaker
• Cable Entry: Underground
• Terminal: Double Mechanical
• Insulation: Glass Polyester
• Mounting: Pedestal
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 4 Terminal
• Bypass Provision: No Bypass
• Number of Meter Positions: Single Power Head
• Equipment Ground: 2 Barrel Ground Lug and Ground Bar
• Hub/Closing Plate: Small Closing Plate
• Line Side Wire Range: 6 AWG - 350 kcmil
• Number Branch Circuits: 2
• Number of Receptacles: 3
• Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
• Height: 40.5 IN
• Length: 5.188 IN
• Width: 8.656 IN
• UNSPSC Number: 39121102
• Product Family Code: RVUM
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
