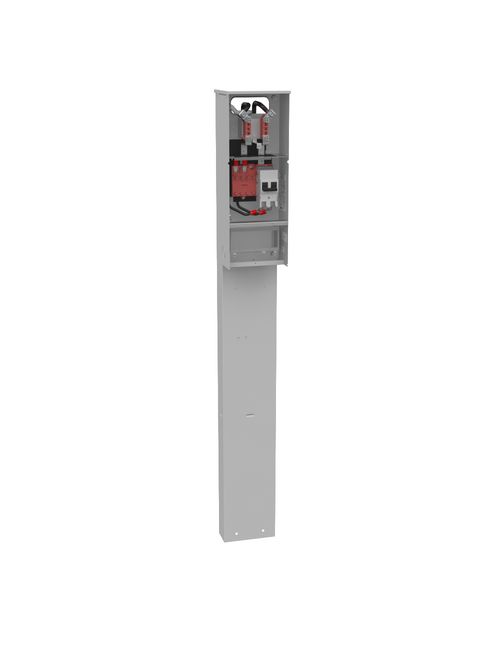

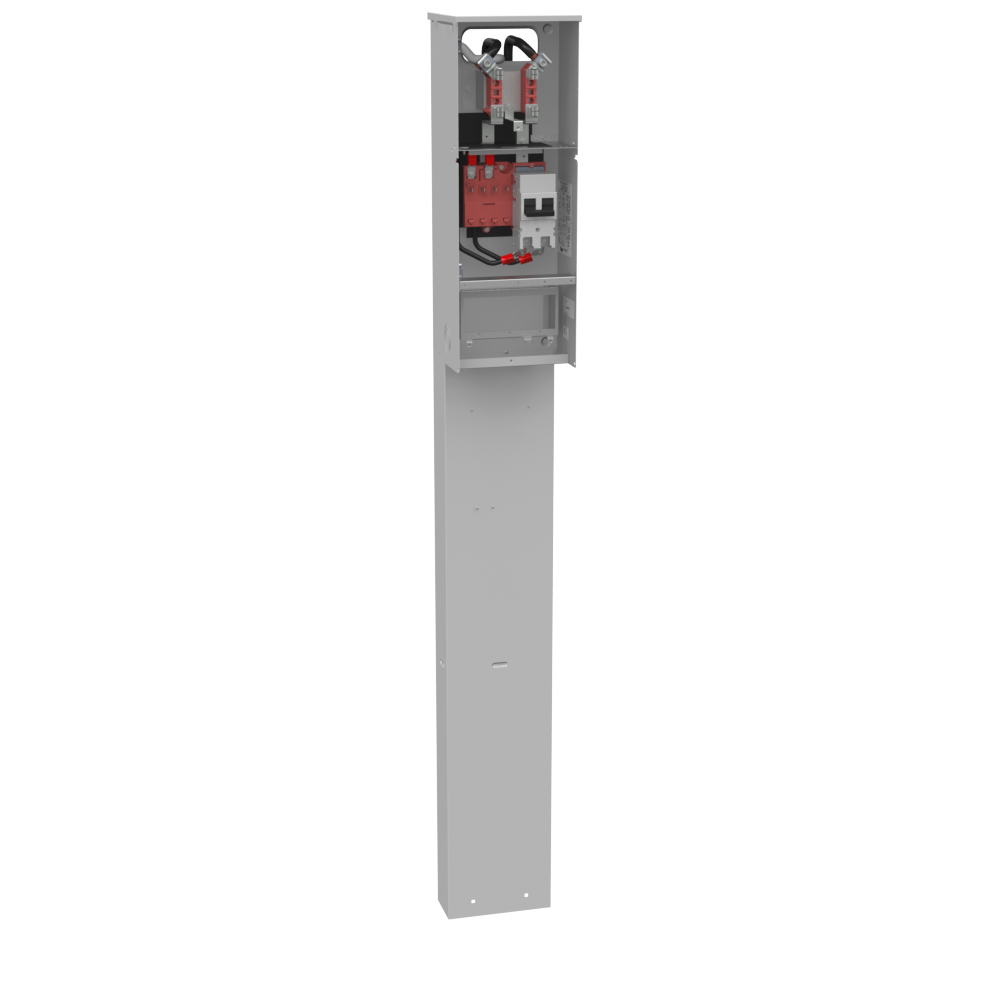

MILB U5240-O-200S 200A RT MTR DB PE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$794.03/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5240-O-200S
North Coast Part # 337996

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Special Features: Series Wired
  • Application: Mobile Home Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 10.25L x 9.688W x80H
  • Number of Main Breakers: 1
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Cable Entry: Underground
  • Terminal: Double Mechanical
  • Insulation: Glass Polyester
  • Mounting: Pedestal
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: Ground Bar
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1/0 AWG - 300 kcmil
  • Number Branch Circuits: 4
  • Number of Receptacles: 0
  • Height: 80 IN
  • Length: 10.25 IN
  • Width: 9.688 IN
  • UNSPSC Number: 39121102
  • Product Family Code: MHSP
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457227592
GTiN 00784572275928
Length 10.25 in
Width 9.688 in
Size 10.25L x 9.688W x 80H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Double Mechanical
Applications Mobile Home Power
Mounting Type Pedestal
Height 80 in
Cable Size 350 MCM
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 200 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
