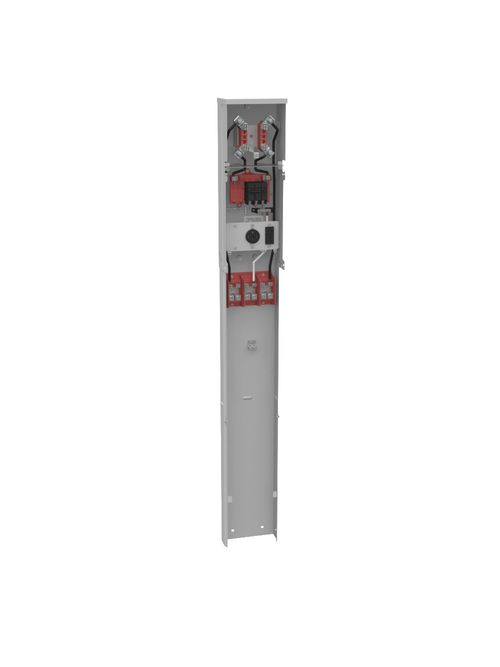

MILB U5300-O-55 125A RT MTR DB PED
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$547.45/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U5300-O-55
North Coast Part # 346579

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Special Features: One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker
  • Application: RV Power
  • Standard: UL Listed;Type 3R
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.313L x 8.688W x70.25H
  • Number of Main Breakers: 2
  • Main Breaker Size: One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker
  • Cable Entry: Underground
  • Terminal: Double Mechanical
  • Insulation: Glass Polyester
  • Mounting: Pedestal
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: Single Power Head
  • Equipment Ground: 2 Barrel Ground Lug and Ground Bar
  • Hub/Closing Plate: Plain Top
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Branch Circuits: 3
  • Number of Receptacles: 2
  • Receptacle Configuration: One NEMA 14-50 and One NEMA 5-20 Ground Fault
  • Height: 70.25 IN
  • Length: 5.313 IN
  • Width: 8.688 IN
  • UNSPSC Number: 39121102
  • Product Family Code: RVNM
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457226642
GTiN 00784572266421
Length 5.313 in
Width 8.688 in
Size 5.313L x 8.688W x 70.25H
Voltage 240 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Double Mechanical
Applications RV Power
Mounting Type Pedestal
Height 70.25 in
Cable Size 350 MCM
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1
Number of Terminations 4
Amperage 125 Amp
Hub Style Plain Top
Cable Entry Underground
Enclosure G90 Galvanized Steel with Powder Coat Finish
