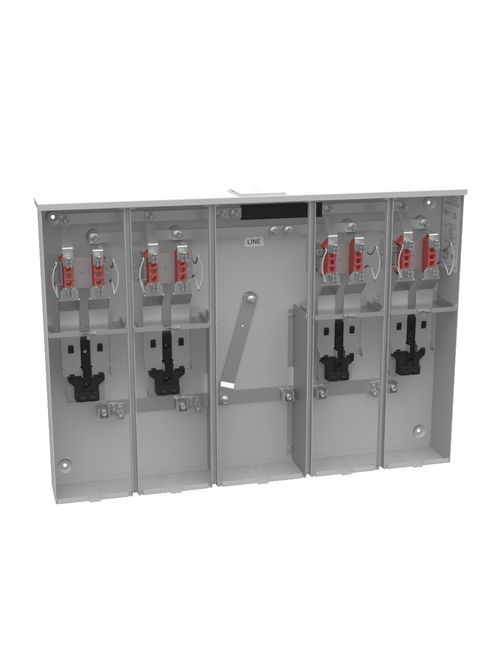

MILB U5884-X 200A 4T RL OU 4P MAIN

Specifications

• Brand Name: Milbank
• Type: Ringless Meter Socket
• Application: Meter Socket With Main
• Standard: UL Listed;Type 3R
• Voltage Rating: Up to 240 Volts Alternating Current
• Amperage Rating: 200 Continuous Ampere
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 5.125L x 42.813W x30H
• Number of Main Breakers: 0
• Main Breaker Size: Breaker Provision
• Cable Entry: Overhead or Underground
• Terminal: 3/8 Inch Stud
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 4 Terminal
• Bypass Provision: No Bypass
• Number of Meter Positions: 4 Positions
• Equipment Ground: Ground Lug
• Hub/Closing Plate: Large Closing Plate
• Number Branch Circuits: 4
• Number of Receptacles: 0
• Height: 30 IN
• Length: 5.125 IN
• Width: 42.813 IN
• UNSPSC Number: 39121102
• Product Family Code: CU20
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
