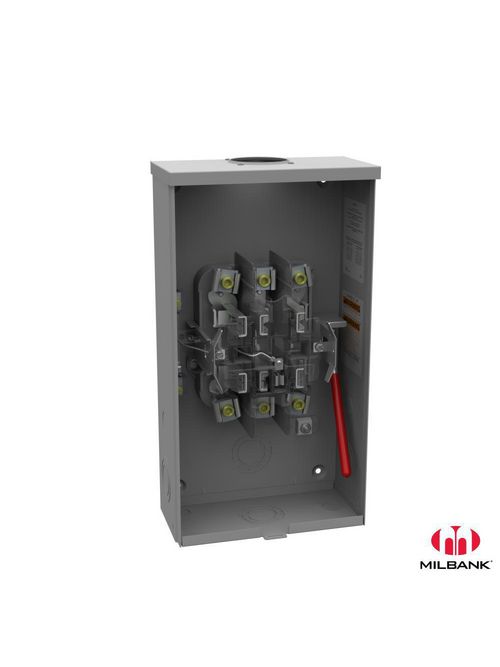

Milbank U7573-RL 600 VAC 125 Amp 7-Terminal 3-Phase 1-Position Overhead Ringless Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$323.58/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U7573-RL
North Coast Part # 675689

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 3 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.844L x 10W x18.5H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 7 Terminal
  • Bypass Provision: Lever Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Grounding Stud
  • Hub/Closing Plate: Small Hub Opening
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Number of Receptacles: 0
  • Height: 18.5 IN
  • Length: 4.844 IN
  • Width: 10 IN
  • UNSPSC Number: 39121102
  • Product Family Code: MD7T
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457214162
GTiN 00784572141629
Length 4.844 in
Width 10 in
Size 4.844L x 10W x 18.5H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket
Mounting Type Surface Mount
Height 18.5 in
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 3
Number of Terminations 7
Amperage 125 Amp
Hub Style Small Hub Opening
Cable Entry Overhead
Enclosure Type 3R,G90 Galvanized Steel With Powder Coat Finish
