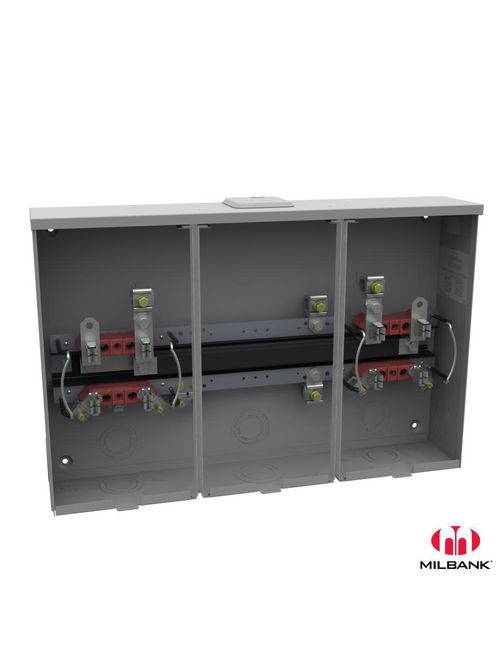

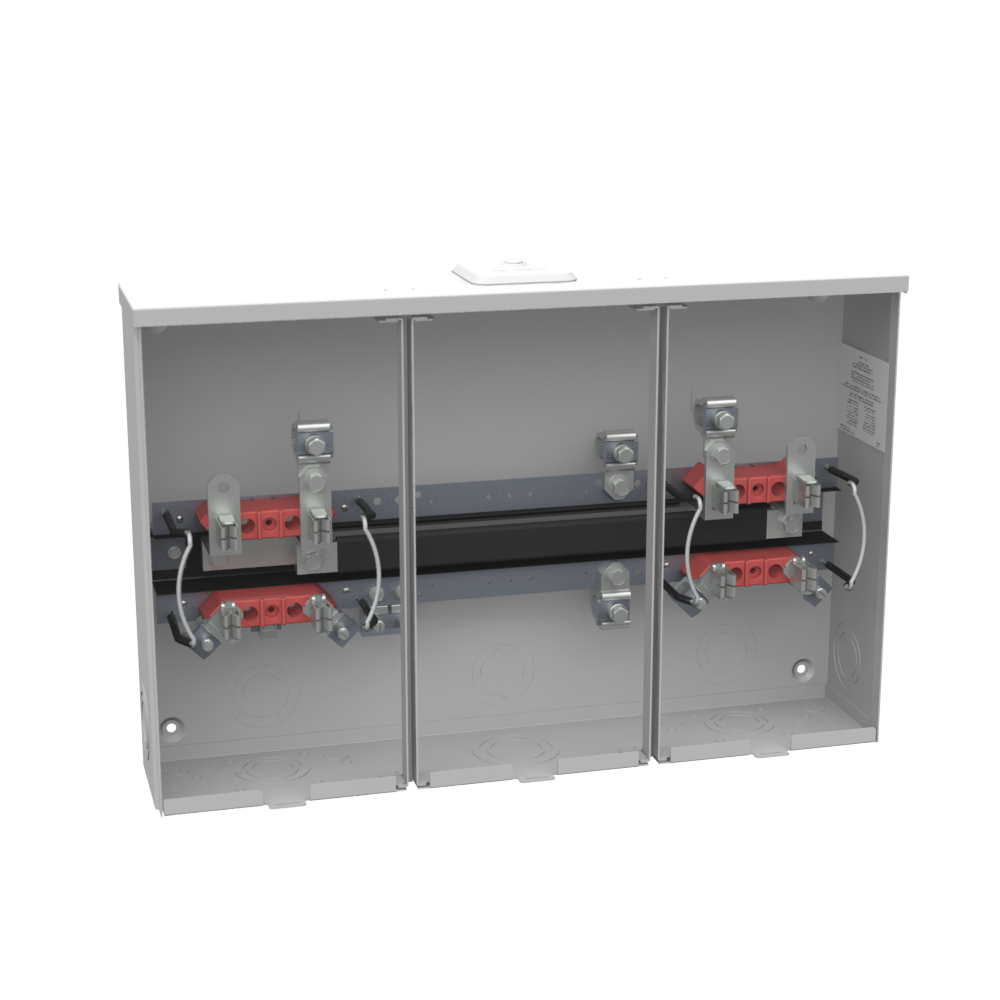

Milbank 14175 U8032-XL 300 VAC 1-Phase 100 Amp 4-Terminal Ringless Meter Socket

Specifications

• Brand Name: Milbank
• Type: Ringless Meter Socket
• Application: Meter Socket
• Standard: UL Listed;Type 3R
• Voltage Rating: 300 Volts Alternating Current
• Amperage Rating: 100 Continuous Ampere
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 4.5L x 24.5W x16H
• Number of Main Breakers: 0
• Main Breaker Size: No Main Breaker
• Cable Entry: Overhead or Underground
• Terminal: Lay in
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 4 Terminal
• Bypass Provision: No Bypass
• Number of Meter Positions: 2 Positions
• Equipment Ground: Ground Lug
• Hub/Closing Plate: Small Closing Plate
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 - 2/0 AWG
• Number of Receptacles: 0
• Height: 16 IN
• Length: 4.5 IN
• Width: 24.5 IN
• UNSPSC Number: 39121102
• Product Family Code: G125
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
