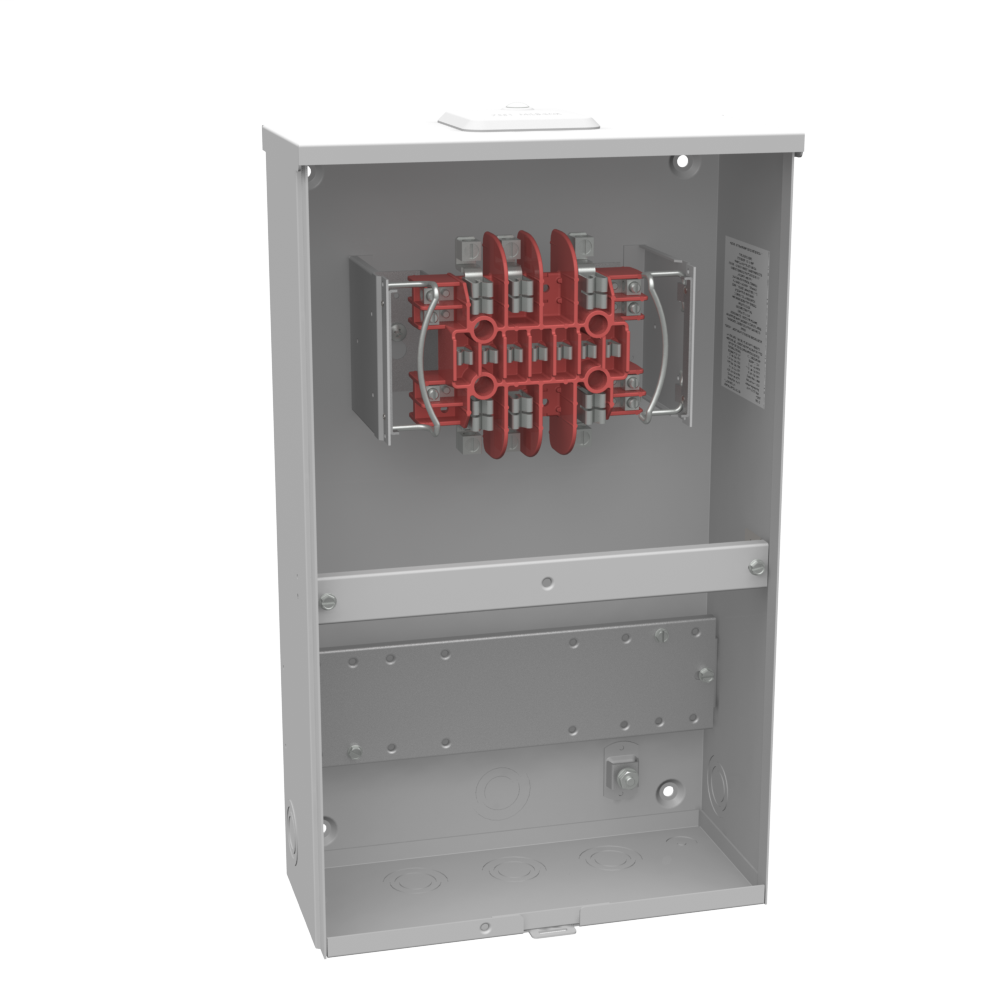

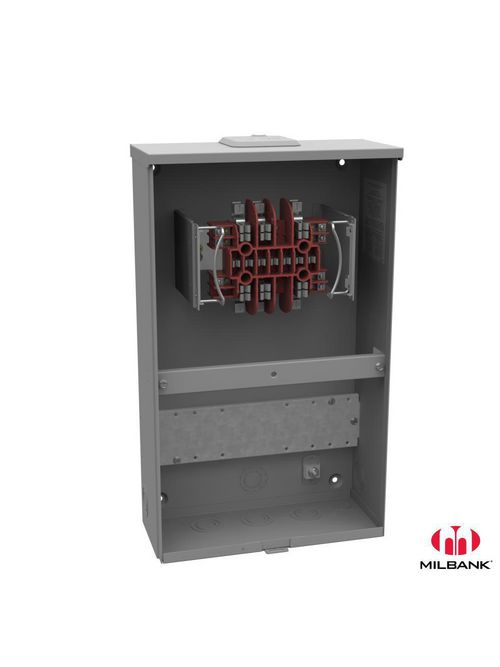

Milbank UC3423-XL 600 VAC 20 Amp 13-Terminal 3-Phase 1-Position Ringless Overhead/Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$536.10/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # UC3423-XL
North Coast Part # 67081

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 20 Continuous Ampere
  • Phase: 3 Phase
  • Frequency Rating: 60 Hertz
  • Size: 5.125L x 12W x20H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Single Mechanical
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 13 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Ground Lug
  • Hub/Closing Plate: Small Closing Plate
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Number of Receptacles: 0
  • Height: 20 IN
  • Length: 5.125 IN
  • Width: 12 IN
  • UNSPSC Number: 39121102
  • Product Family Code: CT20
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457214441
GTiN 00784572144415
Length 5.125 in
Width 12 in
Size 5.125L x 12W x 20H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Single Mechanical
Applications Meter Socket
Mounting Type Surface Mount
Height 20 in
Standard UL Listed,Type 3R
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 3
Number of Terminations 13
Amperage 20 Amp
Hub Style Small Closing Plate
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel With Powder Coat Finish,Type 3R
