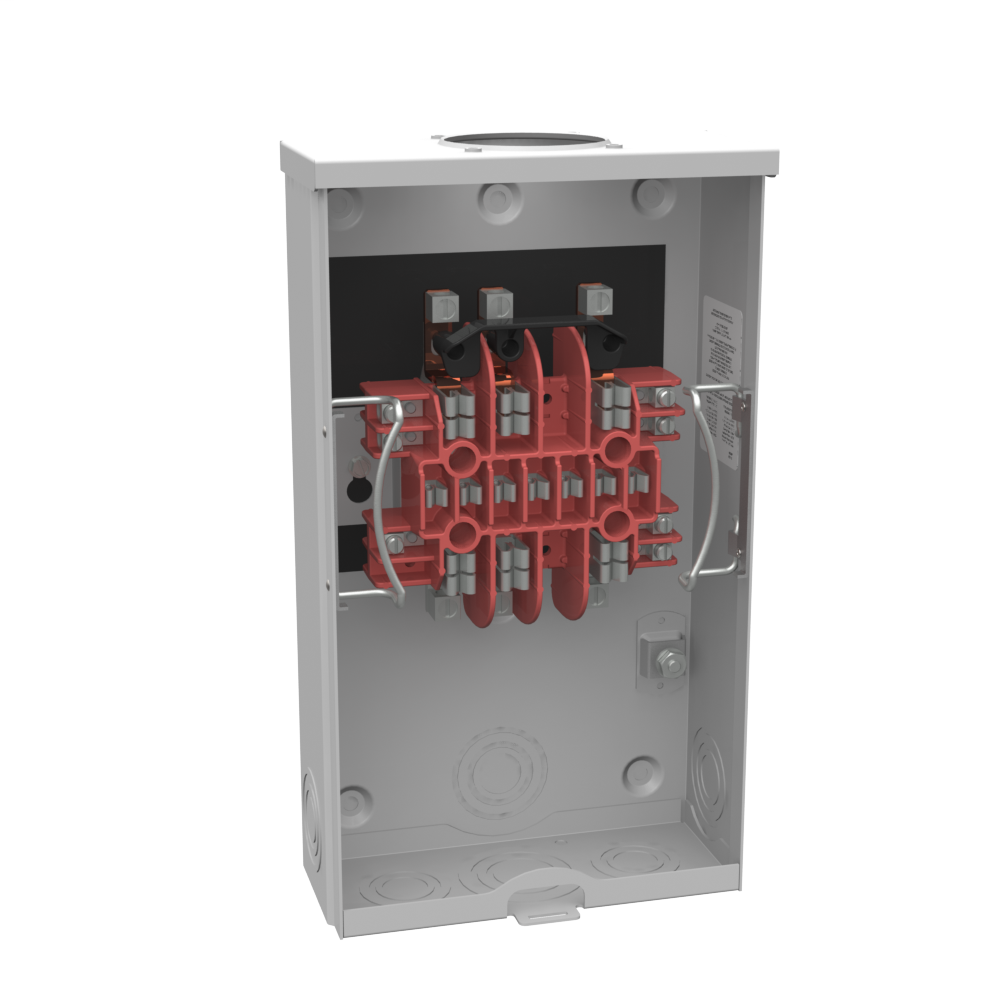

Milbank UC7237-RL 600 VAC 20 Amp 13-Terminal 3-Phase 1-Position Ringless Overhead/Underground Meter Socket

Specifications

• Brand Name: Milbank
• Type: Ringless Meter Socket
• Application: Meter Socket
• Standard: UL Listed;Type 3R
• Voltage Rating: 600 Volts Alternating Current
• Amperage Rating: 20 Continuous Ampere
• Phase: 3 Phase
• Frequency Rating: 60 Hertz
• Size: 3.313L x 8W x14H
• Number of Main Breakers: 0
• Main Breaker Size: No Main Breaker
• Cable Entry: Overhead or Underground
• Terminal: Single Mechanical
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: G90 Galvanized Steel with Powder Coat Finish
• Number of Jaws: 13 Terminal
• Bypass Provision: Auto Bypass
• Number of Meter Positions: 1 Position
• Equipment Ground: Ground Lug
• Hub/Closing Plate: Small Hub Opening
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Number of Receptacles: 0
• Height: 14 IN
• Length: 3.313 IN
• Width: 8 IN
• UNSPSC Number: 39121102
• Product Family Code: CT20
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
