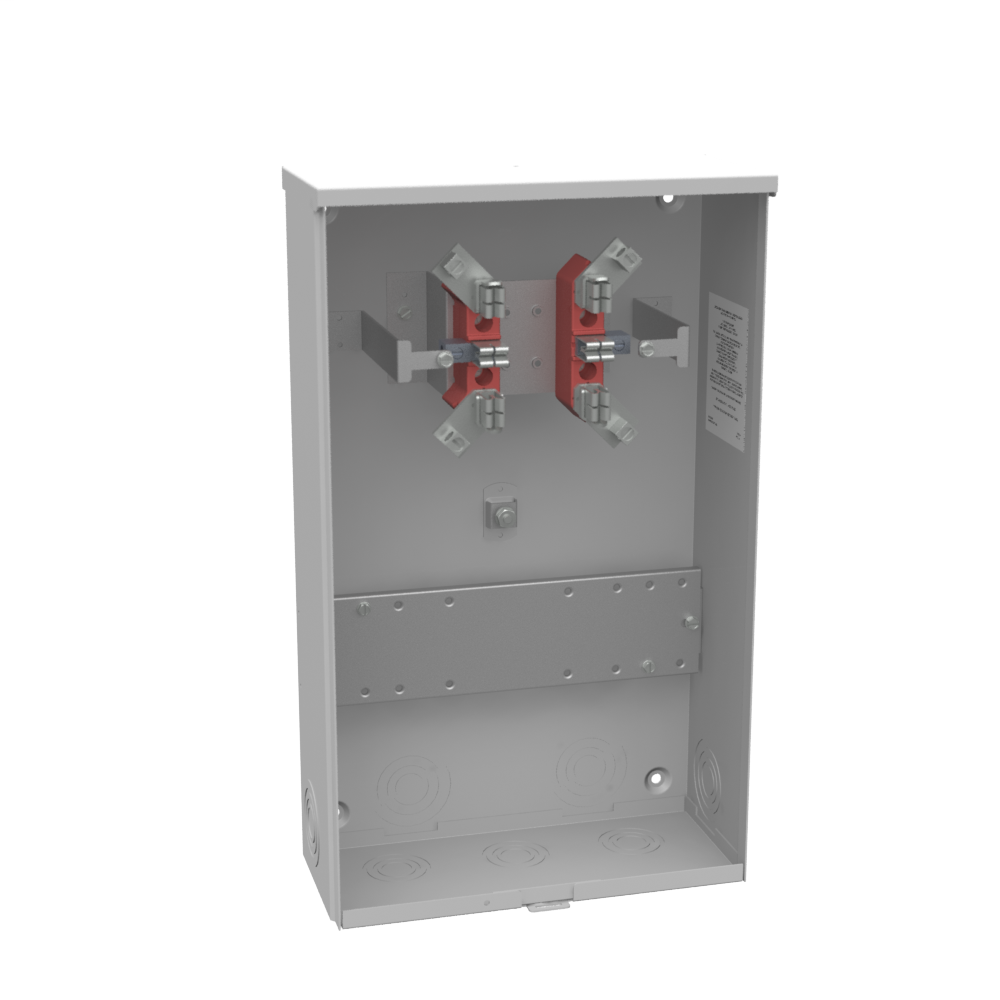

MILB UCSS3436-O 20A 6T RT TS PROV U

Specifications

• Brand Name: Milbank
• Type: Ring Type Meter Socket
• Application: Meter Socket
• Standard: UL Listed;Type 3R
• Voltage Rating: 600 Volts Alternating Current
• Amperage Rating: 20 Continuous Ampere
• Phase: 1 Phase
• Frequency Rating: 60 Hertz
• Size: 5.125L x 12W x20H
• Number of Main Breakers: 0
• Main Breaker Size: No Main Breaker
• Cable Entry: Underground
• Terminal: Single Mechanical
• Insulation: Glass Polyester
• Mounting: Surface Mount
• Material: 304 Stainless Steel with Powder Coat Finish
• Number of Jaws: 6 Terminal
• Bypass Provision: No Bypass
• Number of Meter Positions: 1 Position
• Equipment Ground: Ground Lug
• Hub/Closing Plate: Plain Top
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Number of Receptacles: 0
• Height: 20 IN
• Length: 5.125 IN
• Width: 12 IN
• UNSPSC Number: 39121102
• Product Family Code: CT20
• Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.
