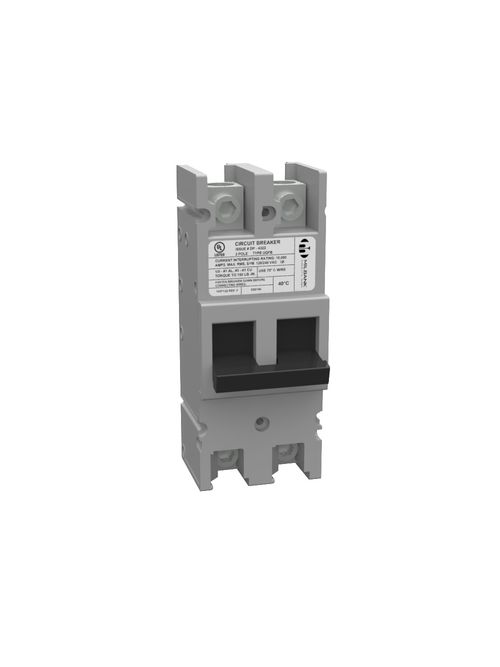

MILB UQFB-150 150A 2P BOLT-ON CB 10

$306.24/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Brand Name: Milbank
Type: Current Interrupting Device
Special Features: Bolt On
Application: Metering Accessory
Standard: UL Listed
Voltage Rating: 240 Volts Alternating Current
Amperage Rating: 150 Ampere
Frequency Rating: 60 Hertz
Phase: 1 Phase
Frame: F-Frame
Trip Type: Thermal Magnetic
Interrupt Rating: 10,000 Ampere Interrupting Capacity
Number Of Poles: 2
Actuator: Lever
Connection: Lug to Lug
Auxiliary Contacts: No Auxiliary Contacts
Material: Non Metallic
Operating Temperature: 40 Degrees Celsius
Height: 7.438 IN
Length: 3.281 IN
Width: 3 IN
UNSPSC Number: 39121601
Product Family Code: MSCB
Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

UPC	78457214639
GTiN	00784572146396
Length	3.281 in
Width	3 in
Operating Temperature	40 C
Voltage	240 Volt
Type	Current Interrupting Device
Material	Non Metallic
Applications	Metering Accessory
Height	7.438 in
Standard	UL Listed
Frequency	60 Hz
Connection Type	Lug To Lug
Family Brand Name	Milbank
Number of Phases	1 Phase
Frame	F
TC Connection	Lug to Lug
Actuator	Lever
Amperage	150 Amp
Trip Type	Thermal-Magnetic
Number of Poles	2 Pole
Interrupt Rating	10,000 A
