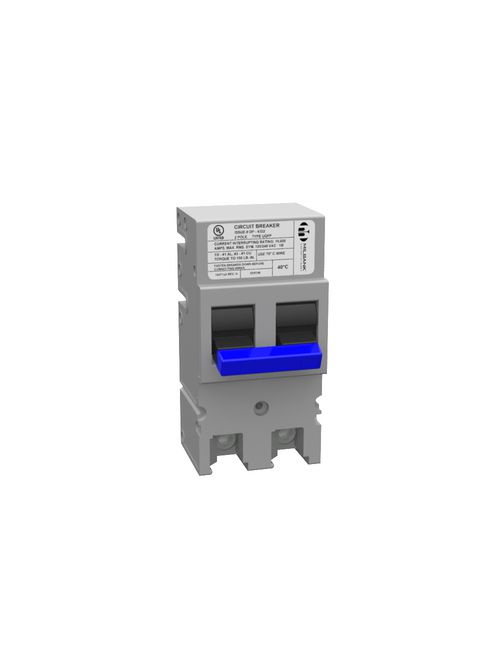

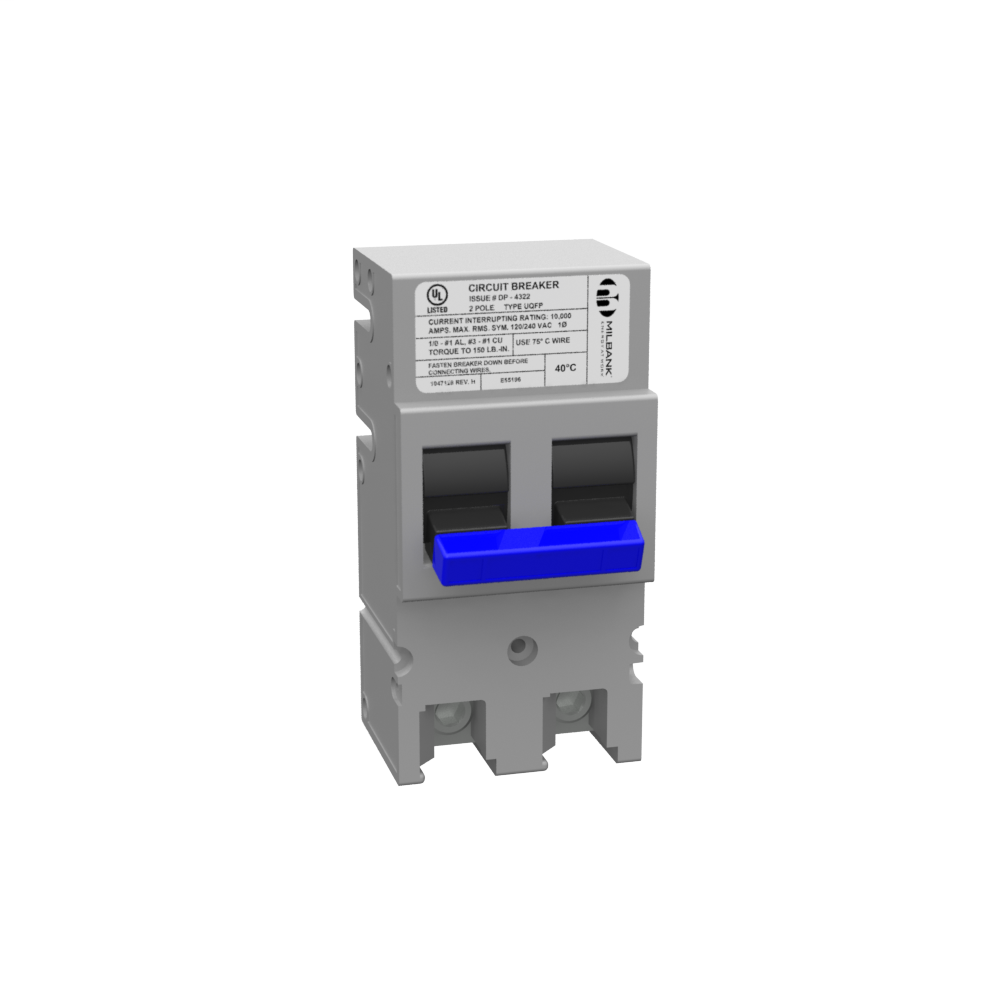

MILB UQFPH-175 175A 2P PLUG-IN CB 2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$649.37/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # UQFPH-175
North Coast Part # 674252

Specifications

  • Brand Name: Milbank
  • Type: Current Interrupting Device
  • Special Features: Plug On
  • Application: Metering Accessory
  • Standard: UL Listed
  • Voltage Rating: 240 Volts Alternating Current
  • Amperage Rating: 175 Ampere
  • Frequency Rating: 60 Hertz
  • Phase: 1 Phase
  • Frame: F-Frame
  • Trip Type: Thermal Magnetic
  • Interrupt Rating: 22,000 Ampere Interrupting Capacity
  • Number Of Poles: 2
  • Actuator: Lever
  • Connection: Bus to Lug
  • Auxiliary Contacts: No Auxiliary Contacts
  • Material: Non Metallic
  • Operating Temperature: 40 Degrees Celsius
  • Height: 6.063 IN
  • Length: 3.281 IN
  • Width: 3 IN
  • UNSPSC Number: 39121601
  • Product Family Code: MSCB
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457222755
GTiN 00784572227552
Length 3.281 in
Width 3 in
Operating Temperature 40 C
Voltage 240 Volt
Type Current Interrupting Device
Material Non Metallic
Applications Metering Accessory
Height 6.063 in
Standard UL Listed
Frequency 60 Hz
Connection Type Bus To Lug
Family Brand Name Milbank
Number of Phases 1
Frame F
TC Connection Bus to Lug
Actuator Lever
Amperage 175 Amp
Trip Type Thermal-Magnetic
Number of Poles 2 Pole
Interrupt Rating 22,000 A
