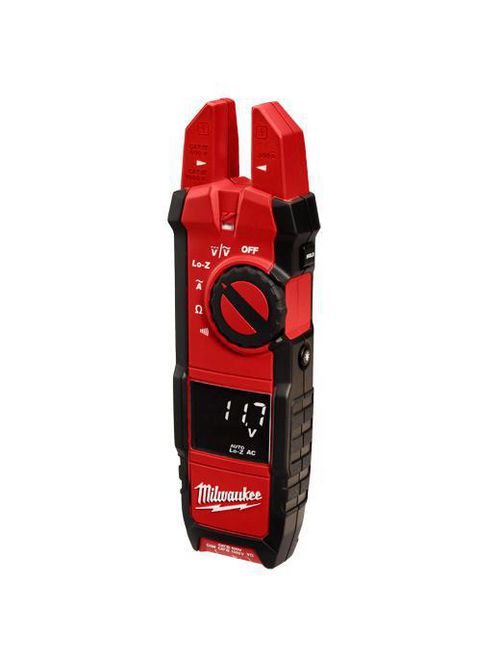

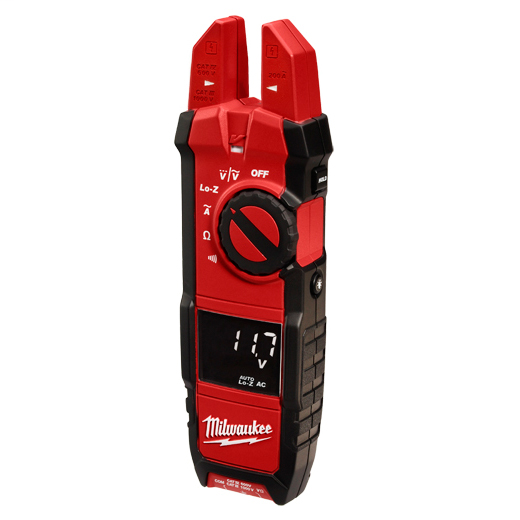

Milwaukee 2205-20 Fork Meter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 2205-20
North Coast Part # 599898


  • Measures up to 200 amps, Wide 0.63” jaw opening
  • Wide Voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Lo-Z measurement to eliminate ghost voltage
  • Built-In Voltage Detector and LED Work Light
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip
  • CAT IV 600V / CAT III 1000V for greater safety


  • (1) Fork Meter (2205-20)
  • (1) Test Lead Set
  • (2) AA Batteries
  • (1) Manual


  • Display Type: White on Black LCD
  • Switch Type: Dial
  • Tool Warranty: 5 Years
  • Battery Type: Alkaline (AA)
  • Length: 8"
  • TRMS: Yes
  • Safety Rating: CAT IV 600V / CAT III 1000V
  • Current AC: 200A
  • Voltage AC DC: 1000V
  • Resistance: 40MΩ
  • Continuity: Audible
  • Display Backlight: Yes
  • Non Contact Voltage: Yes
  • LED Work Light: Yes
  • Rugged Over molding: Yes
  • Fork Opening: .63"
  • Lo Z Measurement: Yes


UPC 04524217373
GTiN 00045242173730
Length 8 in
Warranty Length 5 Years
Battery Type (AA) Alkaline
Applications For Professional, Residential, Commercial and Industrial Applications
Family Brand Name Milwaukee
Blade Dimensions 8 in L
Resistance 40 m?
Operating Temperature 14 - 122 F
Type Heavy Duty, True RMS
Accuracy +/- (2% + 5 Digits)
Jaw Capacity 5/8 in
Voltage 1000 Vac/Vdc
