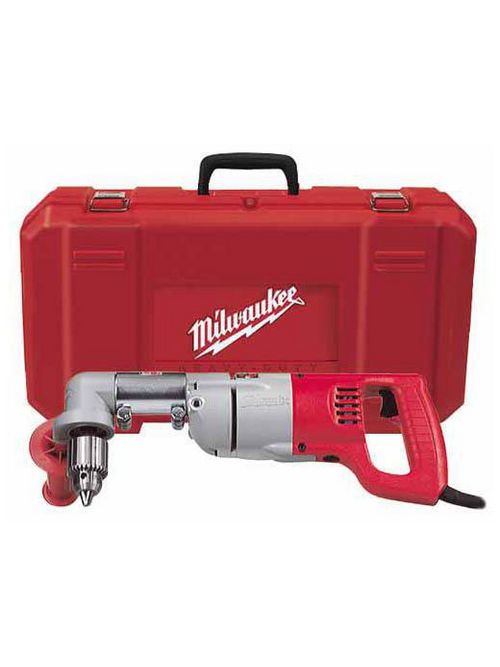

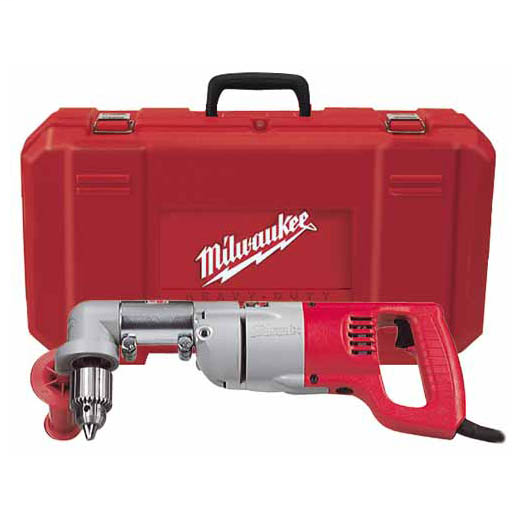

Milwaukee 3002-1 1/2" D-handle Right Angle Drill Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 3002-1
North Coast Part # 11951


  • 1/2 in. capacity in steel, handles up to a 2-9/16 in. Selfeed bit
  • Trigger speed control in two ranges: 0-400/0 to 900 RPM, reversing
  • Powerful 7 amp motor
  • Head and handle swivel 360°


  • Powered Tool Power Source: Electric - Corded
  • Drill Type: Right Angle Drill
  • Cordless / Corded: Corded
  • Drill Amperage (A): 7
  • Voltage (V): 120.0
  • Chuck Capacity: 1/2
  • Chuck Size: 1/2 in
  • Chuck Design: Keyed
  • Color / Finish: Red
  • Cord Length (ft): 8.0
  • Drill / Driver Maximum RPM: 900
  • Maximum Torque (ft-lbs): 763.0
  • Reverse: Yes
  • Forward / Reverse Rocker Switch: No
  • Side Handle: Yes
  • Variable Speed: Yes
  • Tool Handle Type: D
  • Handle Material: Plastic
  • Housing Material: Plastic
  • Case Included: Yes
  • Length (in): 6.13
  • Width (in): 12.25
  • Net Tool Weight (lbs): 10.3
  • Weight (lbs): 16.0
  • Lock-on Switch: No
  • Range Spindle Lock: No
  • Switch Type: Trigger
  • Decibel Rating (dB): 0.0
  • CSA Certified: Yes
  • ETL Listed: No
  • UL Listed: Yes
  • Package Contents: Tool, RAD unit, 9/16" open end wrench, 3/16" socket wrench, chuck remover bar, side handle and carrying case


UPC 04524200500
Item Long Description D-handle power and a right angle drive head make this drill package perfect for stud and joist drilling. Powerful 7 amp motors and three speed ranges make this a versatile tool that will handle a wide range of applications. The 3002-1 features a 0 to 600 RPM motor; this gives the two speed head 0 to 400 RPM on low and 0 to 900 RPM on high. These powerful units come in an impact resistant carrying case and include a side handle for ease of operation.
GTiN 00045242005000
Length 6.13 in
Warranty Length 5 Years
Voltage 120 Volt
Cord Type 8' Fixed
Applications For Stud and Joist Drilling
Weight 16.0 lb
Construction Type Grounded
Chuck Type Keyed
Family Brand Name Milwaukee
Chuck Size 1/2 in
Power Source Corded
Amperage 7 Amp
Type Right Angle, Corded
Handle Type D-Handle, Side
Capacity 2-9/16 in Selfeed Bit
Control Type Trigger Switch
Cord Length 8 ft
Width 12.25 in
Color Red
Net Weight 10.3 lb
