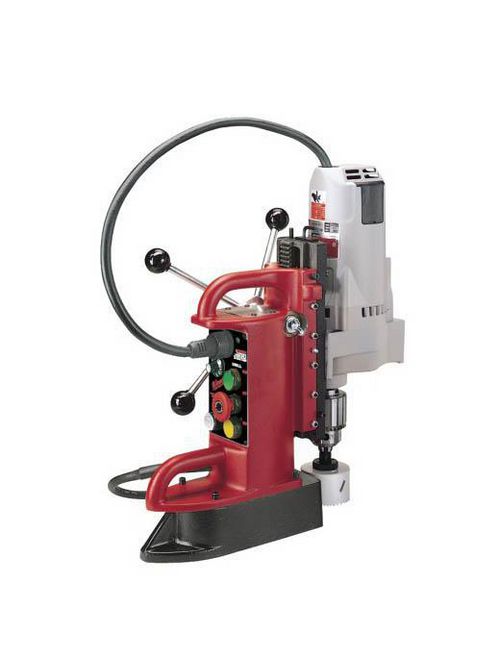

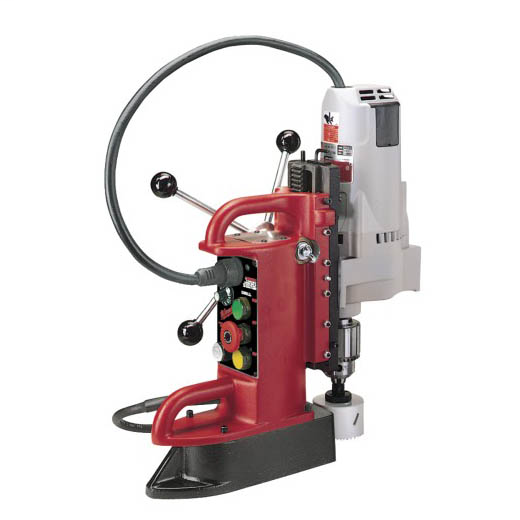

Milwaukee 4210-1 Fixed Position Electromagnetic Drill Press with 3/4" Motor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 4210-1
North Coast Part # 266723


  • Powerful 12.5 amp motor: engineered for the toughest applications, delivering 350 RPM
  • Dual-mount gear case/reverse mount: permits tight quarter drilling
  • 3/4 in. capacity: taps up to 1 in. to 14 threaded holes
  • Maximum force: develops up to 1670 Lbs. of drill point pressure with a 1 in. steel plate
  • Solid state electronic switching: offers faster, smoother and quieter switching for a longer product lifespan
  • Line lockout: prevents tool from operating if voltage is restored to an interrupted line


  • Color / Finish: red
  • Length (in): 18.75
  • Width (in): 7.0
  • Height (in): 21.0
  • Net Tool Weight (lbs): 62.0
  • Drill Press Type: Portable
  • Speed Range High (rpm): 350.000000
  • Speed Range Low (rpm): 350.000000
  • Spindle Travel (in): 11.000000
  • Chuck Design: Keyed
  • Chuck Key Storage: No
  • Integrated Laser Guide: No
  • Motor Bearings: Ball
  • Speeds: 1
  • Pivot Head: No
  • Table Material: Cast Iron
  • Table Movement: 0
  • Table Tilt Range (Deg): 0
  • Table Work Surface Size: 15
  • Tilting and Swiveling Table: No
  • Horsepower (hp): 0.000000
  • Amperage (A): 12.5
  • Voltage: 120 Volts
  • Chuck Capacity: 1/2 In.
  • 360° Swivel: No
  • Illuminates: No
  • Drive Motor System: 4262-1
  • Quick Release Belt Tension: No
  • CSA Certified: Yes
  • ETL Listed: Yes
  • UL Listed: Yes
  • Package Contents: (1) Fixed Position Electromagnetic Drill Press with base, 3/4" Motor


UPC 04524201284
Item Long Description This combination unit features the 4202 fixed position variable speed base and the 4262-1 3/4 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.
GTiN 00045242012848
Warranty Length 5 yr
Color Red/Gray/Black
Voltage 120 Volt
Type Fixed Position, Corded
Cord Type Fixed
Weight 62.0 lb
Construction Type Grounded
No Load Speed 0-350 rpm
Family Brand Name Milwaukee
Chuck Size 3/4 in
Power Source Corded
Power Rating 2 hp
Amperage 12.5 Amp
Cord Length 9 ft
Blade Dimensions 15 in L x 20-1/2 in H
Length 18.75 in
Width 7.0 in
Height 21.0 in
Net Weight 62.0 lb
