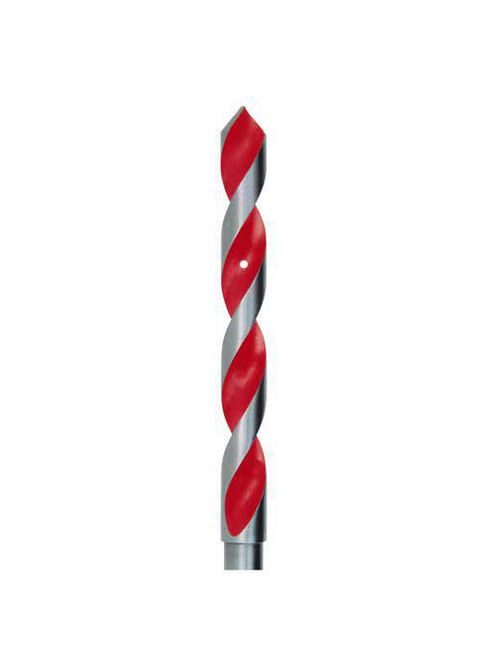

Milwaukee Tool 48-13-7231 5/16 x 18 Inch Bit Bellhanger
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 48-13-7231
North Coast Part # 426469


  • Aggressive tip geometry provides faster cutting
  • Non-stick coated flutes create faster chip ejection and reduces binding
  • Wire pulling hole enables wire to be attached to the bit and pulled through holes when needed
  • 3-flat shank stops bit from slipping in the chuck


  • Bit Diameter: 5/16
  • Bit Material: High Speed Steel
  • Bit Type: Installer
  • Package Contents: (1) Bellhanger Bit
  • Shank Diameter (in): 0.312500
  • Drilling Depth (in): 14.000000
  • Flute Length (in): 4.000000
  • Minimum Chuck Size Required: 1/4 in
  • Application: For installers of all types of small wire systems - computer, security, phone, cable, etc.
  • Overall Length (in): 18.0
  • Recommended Safety Equipment: Safety Glasses


UPC 04524209340
Item Long Description The Milwaukee bellhanger bit is ideal for installing all kinds of small wire systems such as computer, security and phone cable. It provides extra length for extra reach as well as a hole in the tip of the bit to attach the wire to pull back through the wall. One per package.
GTiN 00045242093403
Length 18 in
Finish Coated Flute
Type Heavy Duty
Diameter 5/16 in
Applications For Installing all Types of Small Wire Systems Including Computer, Security, Phone and Cable
Style Bellhanger/Installer Bits
Shank Type 3-Flat
Pkg Qty 1 Pack
Family Brand Name Milwaukee
Overall Length 18 in
Shank 3-Flat
Shank Diameter 0.312 in
Flute Length 4.000 in
Drilling Depth 14.000 in
