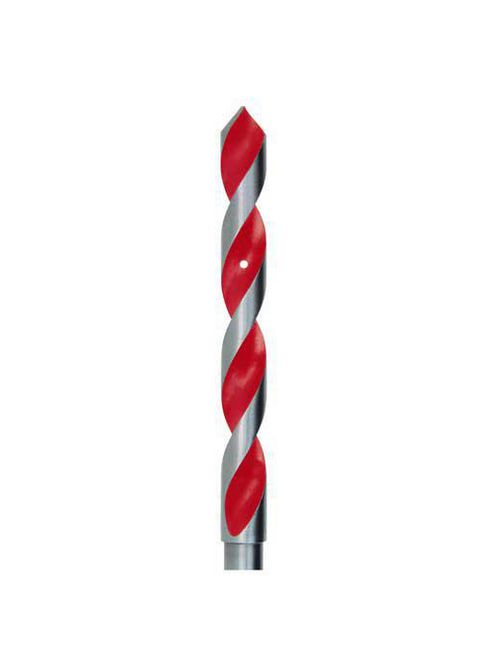

Milwaukee 48-13-7249 Bit Bellhanger 1/2 18 L
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$26.28/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 48-13-7249
North Coast Part # 1161508

Features

  • Versatile: provides a pull-through hole in the tip for easy installation of small wire systems
  • High-speed drilling: features an aggressive tip geometry and coated flutes for fast cutting and debris removal
  • Reduced slipping: 3-flat secure-grip shank holds the bit firmly in the drill chuck
  • Wire-pulling hole enables wire to be attached to the bit and pulled through holes when needed

Specifications

  • Bit Diameter: .5
  • Bit Material: High Speed Steel
  • Bit Type: Installer
  • Package Contents: (1) Bit Bellhanger
  • Shank Diameter (in): 0.375
  • Drilling Depth (in): 18.0
  • Flute Length (in): 4.0
  • Minimum Chuck Size Required: 1/2 in
  • Application: installing all types of small wire systems
  • Overall Length (in): 19.5
  • Recommended Safety Equipment: Safety Glasses
  • Single / Double Ended: Single
  • Number of Flutes: 2

Overview

UPC 04524222488
Item Long Description The Milwaukee 48-13-7249 1/2 in. Installer drill bit features metal construction for durability and coated flutes for fast chip removal. The bit design includes an aggressive tip geometry for quick cutting. Milwaukee's bell hanger bits are ideal for installing all types of small wire systems including computer, security, phone and cable. With 12 in., 18 in. and 24 in. lengths they provide extra reach where needed and a hole in the tip to help pull wires through holes. Non-stick coated flutes increases chip ejection and reduces binding. An aggressive tip geometry provides faster cutting and the 3-flat shank stops the bit from slipping in the user's drill.
GTiN 00045242224883
Length 18 in
Diameter 1/2 in
Applications For Wood
Style Bellhanger/Installer Bits
Shank Type Cylindrical Plug-in Axle with Flat End
Pkg Qty 1 Pack
Family Brand Name Milwaukee
Overall Length 18 in
Shank 3-Flat
Shank Diameter 0.375 in
Flute Length 4.0 in
Drilling Depth 18.0 in
