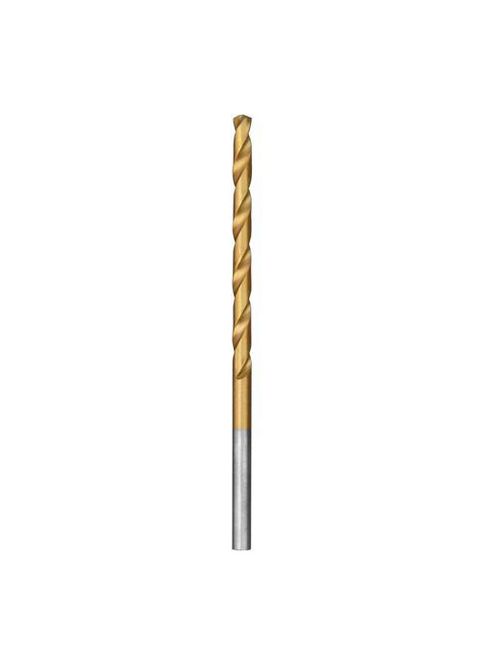

Milwaukee 48-89-2205 1/8" Thunderbolt® Titanium Coated Drill Bit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 48-89-2205
North Coast Part # 1685091


  • Longer life: titanium coating reduces heat build-up for up to 3X longer life
  • Extreme durability: thicker web provides greater strength
  • Fast, accurate drilling: 135° split point tip starts on contact to prevent walking, while the parabolic flute clears chips fast
  • Reduced slipping: 3-flat Secure-Grip™ shank holds the bit firmly in the drill chuck
  • Versatile: reduced shank diameter for use in 3/8 in. chucks
  • Corrosion resistant: Titanium coating keeps the bit sharp and provides added protection from heat build-up


  • Bit Material: Titanium Coated
  • Bit Type: Specialty
  • Flute Length (in): 5.0
  • Length (in): 5.5
  • Shank Diameter (in): 0.125
  • Bit Diameter: .125
  • Minimum Chuck Size Required: 1/8 in
  • Cut Direction: Right Hand / Clockwise
  • Recommended Safety Equipment: Safety Glasses
  • Single / Double Ended: Single
  • Drill Diameter (in): 0.125
  • Drill Point Angle: 135°
  • Drilling Depth (in): 5.0
  • Surface Coating: TiN (Titanium Nitride)
  • Grade: Heavy Duty
  • Series: Milwaukee® Thunderbolt® Titanium Coated Drill Bits
  • Drill Point Design: Split
  • Weight (lbs): 0.025
  • Package Contents: (1) Drill Bit
  • Package Quantity: 1
  • Quick Change Impact Driver Bit: No
  • Drill Bit Length Type: Jobber


UPC 04524218774
Item Long Description Milwaukee Thunderbolt Titanium coated drill bits are designed for extreme durability and up to 3X longer life. The Thunderbolt web features a thicker core than a standard drill bit to provide ultimate strength and protect against side-load breakage. The titanium coating reduces heat build-up and keeps the bit sharp to extend performance. A specially designed parabolic flute form clears chips and debris fast to keep the bit cool. The 135 split point tip delivers a precision start and prevents walking for fast, accurate holes. Effective for drilling on curved surfaces, Milwaukee Thunderbolt Titanium Coated bits require less effort to drill through wood, metal and PVC, and are highly recommended for use with portable drills. Includes two bits.
GTiN 00045242187744
Diameter 1/8 in
Material High Speed Steel
Applications For Non-Ferrous Metals, Plastic, Steel, Wood
Shank Size 3/8 in
Shank Type Round
Cutting Depth 1-5/8 in
Coating Titanium
Family Brand Name Milwaukee
Flute Length 1-5/8 in
Overall Length 2-3/4 in
Used With Portable Drills
Cutting Direction Right
Point Angle 135
Shank Round
Sub Brand Thunderbolt
Length 5.5 in
Size 1/8 in
Weight 0.025 lb
Shank Diameter 0.125 in
Drilling Depth 5.0 in
