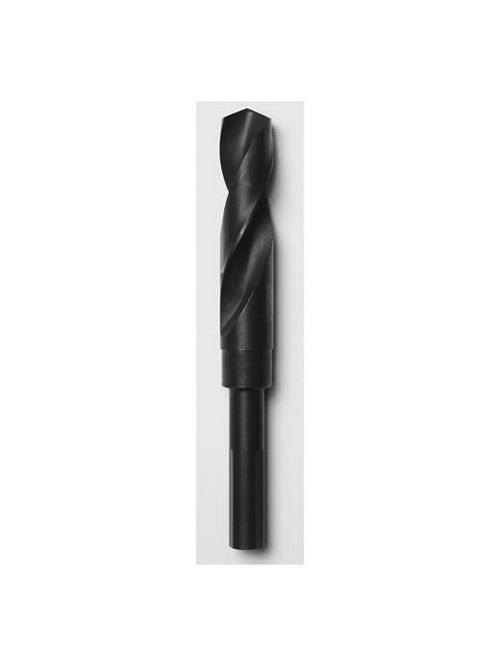

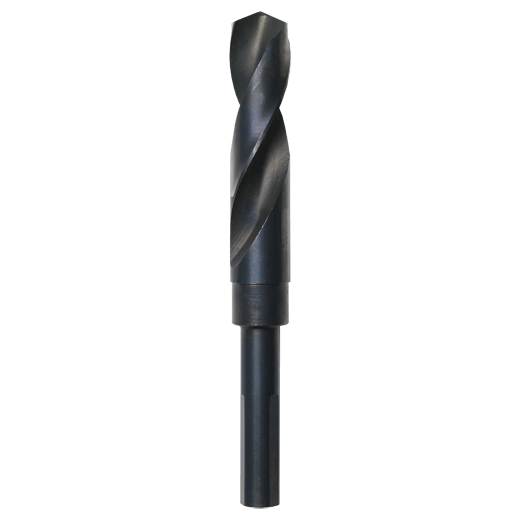

Milwaukee 48-89-2740 9/16" S&D Black Oxide Drill Bit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 48-89-2740
North Coast Part # 1352234


  • Extreme durability: thicker web provides greater strength and longer life
  • Fast, accurate drilling: 135° split point tip starts on contact to prevent walking, while the parabolic flute clears chips fast
  • Reduced slipping: 3-flat Secure-Grip™ shank holds the bit firmly in the drill chuck
  • Versatile: reduced shank diameter for use in 1/2 in. chucks
  • Corrosion resistant: black oxide coating provides lubricity and resists corrosion of the bit


  • Bit Material: Black Oxide
  • Bit Type: Twist
  • Flute Length (in): 4.000000
  • Length (in): 6.0
  • Shank Diameter (in): 0.250000
  • Bit Diameter: 0.5625
  • Minimum Chuck Size Required: 1/4 in
  • Cut Direction: Right Hand / Clockwise
  • Recommended Safety Equipment: Safety Glasses
  • Single / Double Ended: Single
  • Drill Diameter (in): 0.5625
  • Drill Point Angle: 135°
  • Drilling Depth (in): 4.000000
  • Surface Coating: Black Oxide
  • Grade: Heavy Duty
  • Series: Milwaukee® S&D Black Oxide drill bits
  • Drill Point Design: Split
  • Weight (lbs): 0.295000
  • Package Contents: (1) 9/16" S&D Black Oxide Bit
  • Package Quantity: 1
  • Quick Change Impact Driver Bit: No
  • Drill Bit Length Type: Jobber


UPC 04524216713
Item Long Description Milwaukee S&D Black Oxide drill bits are designed for extreme durability and long life. A specially designed parabolic flute form clears chips fast, while the 3-Flat Secure-Grip shank holds the bit firmly in the drill chuck. The 135 split point tip delivers a precision start and prevents walking for fast, accurate holes. Effective for drilling on curved surfaces, Milwaukee Black Oxide bits require less effort to drill through metal, wood and PVC, and are highly recommended for use with portable drills.
GTiN 00045242167135
Length 6.0 in
Diameter 9/16 in
Material High Speed Steel
Applications For Metals, Plastic, Wood
Shank Size 1/2 in
Shank Type Reduced with 3-Flat
Cutting Depth 3 in
Pkg Qty 1 Pack
Coating Black Oxide
Family Brand Name Milwaukee
Flute Length 3 in
Overall Length 6 in
Used With Portable Drills
Point Angle 135
Shank 3-Flat (1/2")
Size 9/16 in
Weight 0.295 lb
Shank Diameter 0.250 in
Drilling Depth 4.000 in
