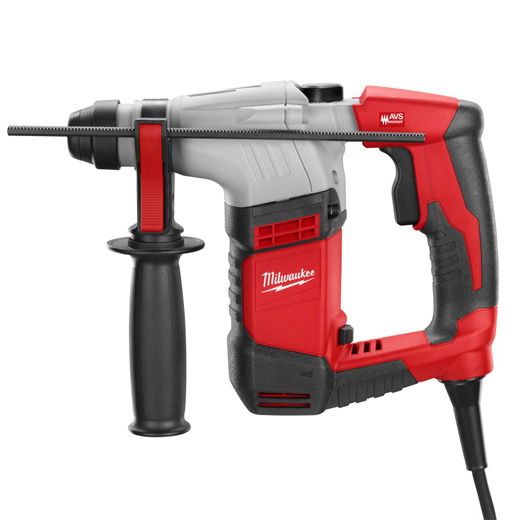

Milwaukee 5263-21 5/8" SDS Plus Rotary Hammer Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 5263-21
North Coast Part # 935646


  • Powerful 5.5 amp Motor: Delivers 0-3, 700 RPM, 0-4,400 BPM and 1.5 ft-lbs of torque, providing up to 65% faster drilling speeds
  • Lightweight 4.6 lb design: reduces fatigue when you drill overhead and in horizontal applications
  • Compact 10.9 in. profile: lets you work more efficiently in tights spaces
  • 2-Mode operation: choose rotary hammer or rotation only for added versatility
  • AVS - anti vibration system: delivers maximum comfort by minimizing vibration
  • Mechanical clutch: protects the motor when the bit binds


  • Powered Tool Power Source: Electric - Corded
  • Cordless / Corded: Corded
  • Amperage (A): 5.5
  • Voltage (V): 120.0
  • Blasts Per Minute - Maximum (BPM): 4400
  • Chuck Capacity: .625
  • Chuck Size: 5/8 in
  • Chuck Design: Keyless
  • Impact Energy: 1.5 ft-lbs
  • Maximum RPM: 3700.0
  • Net Tool Weight (lbs): 4.6
  • Length (in): 15.0
  • Width (in): 12.5
  • Height (in): 5.0
  • Cord Length (ft): 10.0
  • Color / Finish: Red with black Overmold
  • Material: Mechanical Clutch; Metal Gear Box
  • Variable Speed: Yes
  • Product Storage Included: Case
  • Chisel Lock Positions: Yes
  • Electronic Speed Control: No
  • Handle Type: D-Handle
  • Reverse: Yes
  • Side Handle: Yes
  • Thin Wall Core Bit Capacity: Yes
  • Core Bit Capacity (in): 2.125000
  • Type of Modes: 2-Mode Operation: Rotary hammer and rotation only for maximum versatility
  • Thru-Hole Capacity (in): 0.625000
  • Maximum Concrete Cutting Capacity (in): 2.125000
  • Maximum Metal Cutting Capacity (in): 0.0000
  • Maximum Wood Cutting Capacity (in): 0.0000
  • CSA Certified: No
  • ETL Listed: No
  • UL Listed: No
  • Package Contents: 5263-20 5/8" Rotary Hammer, Side Handle, Depth Rod, Carrying Case


UPC 04524219232
Item Long Description The most compact 5/8 in. hammer drill on the market is 30% lighter and 65% faster with plenty of drilling power. At just 10.9 in. long and 4.6 Lbs., Milwaukee Tool 5/8 in. SDS-Plus rotary hammer makes drilling overhead and in tight spaces easier, yet its powerful enough for most professional applications. With a 5.5 amp motor, it delivers 0-3, 700 RPM, 0-4,400 bpm and 1.5 ft-lbs of torque. The innovative gear design and a drop motor provide unmatched balance, while Milwaukee's unique anti-vibration system provides added comfort by minimizing vibration. A mechanical clutch protects the motor when the bit binds, and two-mode operation offers maximum versatility regardless of the application. The kit includes a side handle, depth rod and carrying case.
GTiN 00045242192328
Length 15.0 in
Warranty Length 5 Years
Voltage 120 Volt
Type SDS Plus Rotary Hammer Kit
Cord Type Double Insulated
Weight 4.6 lb
Handle Type Drop Motor
Chuck Type SDS Plus
Family Brand Name Milwaukee
Power Source Corded
Amperage 5.5 Amp
Cord Length 10 ft
Blade Dimensions 10-9/16 in L
Sub Brand SDS
Torque Rating 1-1/2 ft-lb
Width 12.5 in
Color Red With Black Overmold
Height 5.0 in
Net Weight 4.6 lb
