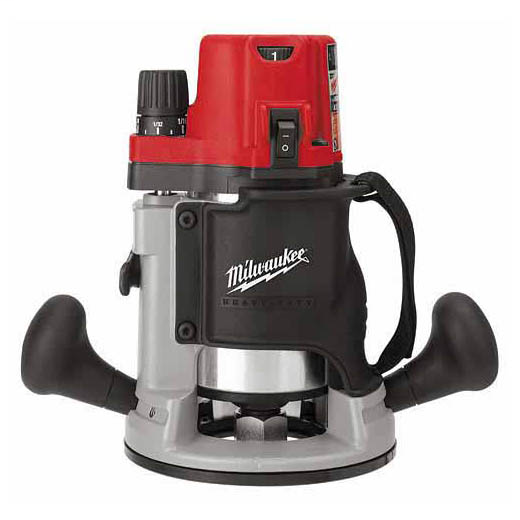

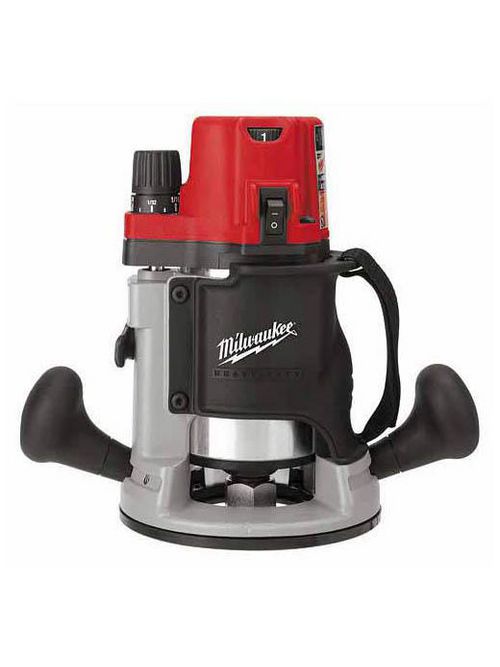

Milwaukee 5616-20 2-1/4 Max HP EVS BodyGrip® Router
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Milwaukee Tool
Mfg Catalog # 5616-20
North Coast Part # 10589


  • Exclusive BodyGrip┬« design
  • Powerful 13 amp, 2-1/4 max hp Milwaukee motor
  • Premium electronic motor feedback maintains speed and power under load
  • Electronic variable speed with soft start (10,000 to 24,000 RPM)
  • Micro-fine linear depth adjustment to within 1/64 in.
  • Exclusive above-the-table depth adjustment system
  • Exclusive motor contamination shield minimizes damage, maximizes airflow


  • Powered Tool Power Source: Electric - Corded
  • Cordless / Corded: Corded
  • Adjustable Depth Stops: Yes
  • Horsepower (hp): 2.25
  • Maximum RPM: 24000.0
  • Variable Speed: Yes
  • Electronic Speed Control: Yes
  • Voltage (V): 120.0
  • Amperage (A): 13.0
  • Primary Collet Size: 1/4 Inch
  • Router Base Type: Fixed
  • Product Storage Included: No Case Included
  • Color / Finish: red, black, silver
  • Cord Length (in): 96.00
  • Depth Adjustment: Yes
  • Dust Collection: No
  • Fence Included: No
  • Handle Type: Plastic
  • Housing Material: Aluminum
  • Lock-on Switch: Yes
  • Spindle Lock: Yes
  • Switch Type: Electric
  • Net Tool Weight (lbs): 8.9
  • Base Diameter (in): 6.000000
  • Bit Change Type: T-Wrench
  • Depth Capacity (in): 1.656250
  • Plunge Lock Control: No
  • CSA Certified: Yes
  • ETL Listed: No
  • UL Listed: Yes
  • Package Contents: Two 1-1/8 In. collet wrenches, 1/2 In. collet, 1/4 In. collet, T-handle wrench


UPC 04524203286
Item Long Description Fully-loaded with an award-winning feature set, Milwaukee's new 2-1/4 max hp electronic variable speed BodyGrip Router offers the ultimate in router performance. Featuring an industry-first BodyGrip design, a comfortable rubber grip wrapped around the router's base with an adjustable, custom-fit handstrap, and two over-molded side handles, comfort is in the palm of your hands. In addition, the router's wide, 6 in. base diameter and low center of gravity design provide a comfortable, well-balanced ride throughout the cut. Whether left or right-handed, the router's design minimizes muscle fatigue while maximizing cut control and comfort during operation. The new router is powered by a best-in-class, 13 amp, 2-1/4 max hp Milwaukee motor with electronic variable speed (10,000-24,000 rpm), premium motor feedback and soft-start technology. With 36 distinct speed settings, the user can precisely match the tool speed to the routing task at hand. The router's premium electronic motor feedback circuitry maintains optimal cutting speed and power throughout a cut, regardless of load conditions. Finally, the router features motor soft-start technology that quickly, steadily ramps the motor up in stages, thus reducing tool jerking and wear on the brushes and bearings. Precise routing ensures one-pass quality profiles. To this end, Milwaukee's new 5616-20 router features Milwaukee's industry-first linear depth adjustment system with above-the-table access. The ideal solution for both free-hand and table-mounted routing, this industry-exclusive system provides fast, accurate coarse adjustments to within 1/8 in. and micro-fine adjustments to within 1/64 in. Unlike helical systems, the motor doesn't spin as the cut depth is changed, ensuring that the motor controls and power cord remain in a constant, optimal position. This revolutionary system can be accessed from above a router table with the included T-handle wrench or any 3/8 in. hex socket wrench with extension and simplifies the once tedious adjustment process required with other models. In addition, the new 2-1/4 max hp EVS BodyGrip routers are built to last in the Milwaukee tradition with an assortment of durability features. The router's circuit board is completely submerged in a protective, flexible compound that protects it from drop-shocks, vibration and damaging contamination. For added protection when table-mounted, the router also features an exclusive motor contamination shield that keeps damaging debris out without sacrificing airflow and a durable, rubber shield for dust-free access to the height adjustment system. Rounding out the defense is a heavy-duty, 22 amp switch, 100% sealed ball bearing motor construction, and a tough machined aluminum motor housing and base. The 5616-21 features an impact resistant carrying case with heavy-duty metal hinges, comfortable free-swinging handle, and on-board wrench and collet storage. Also included is an integral RouterStation, a removable base that fastens quickly and securely to any work surface, providing convenient and reliable storage for the router and accessories. This patented design eliminates the need to change the depth setting or remove the bit altogether before storing the router.
GTiN 00045242032860
Warranty Length 5 Years
Voltage 120 Volt
Cord Type 8' Fixed
Height 8 1/2 in
Weight 8.8 lb
Construction Type Double Insulated
Family Brand Name Milwaukee
Power Source Corded
Amperage 13 Amp
Color Black,Red,Silver
Net Weight 8.9 lb
