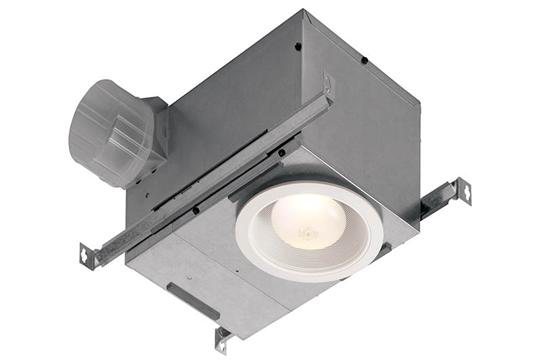

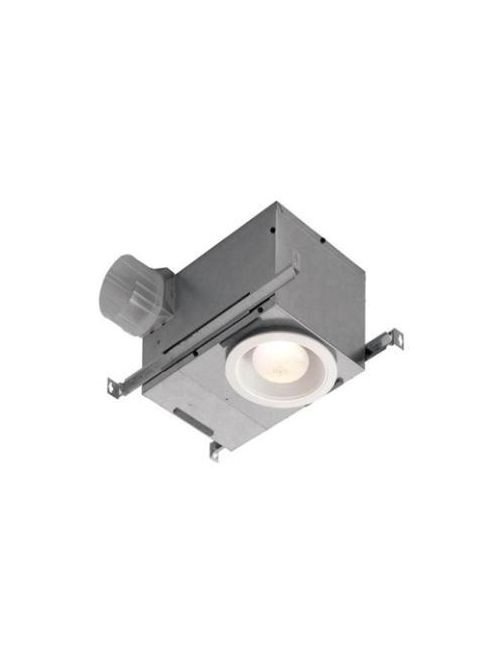

Broan 744FLNT 0.7 Amp 120 Volt 70 CFM 1.5 Sones 7-3/8 Inch White Polymeric Round Grille Ventilation Fan with Lamp and Trim
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$270.94/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 744FLNT
North Coast Part # 343362

Features

  • 70 CFM quickly reduces humidity to prevent or eliminate fogged mirrors and manage moisture in bathrooms up to 65 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • Very quiet operation at 1.5 Sones, for an environment that is so peaceful, you’ll always want the fan on
  • White trim designed to work in any décor and with most popular brands of recessed lighting, makes this fan the perfect choice for use in family rooms, utility rooms, kitchens and bathrooms
  • Uses R30-shaped, 2700K, 16W, high efficacy, compact fluorescent lamp with GU24 base (included)
  • ENERGY STAR® certified, giving you the confidence of knowing your fan won’t be noticed on your utility bill
  • UL Listed for use over tub or shower with a GFCI circuit; that means you can optimize ventilation effectiveness by locating your fan exactly where you need it the most
  • Can be used to comply with California Title 24 installations
  • Install this unit in a flat ceiling only

Specifications

  • Bathrooms up to (X) Square Feet: 65
  • Ceiling Installation: Yes
  • CFM @ 0.10": 70
  • CFM @ 0.25": 55
  • Color: White
  • CSA: No
  • cUL Listed: Yes
  • Duct Direction: Horizontal
  • Duct Size: 4"
  • ENERGY STAR® certified product: Yes
  • ENERGY STAR® Most Efficient 2018: No
  • Globe Color: N/A
  • Grille Diameter: 7-3/8"
  • Grille Finish: White Polymeric
  • Grille Length: N/A
  • Grille Width: N/A
  • Heater Wattage: N/A
  • Housing Dimension LxWxH: 8-1/4" x 12-3/4" x 6-7/8"
  • Housing Height: 6-7/8"
  • Housing Length: 8-1/4"
  • Housing Width: 12-3/4"
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: 1
  • Light Bulb Wattage: 16
  • Light Bulbs Included: Yes
  • Lighting Type: Fluorescent
  • Minimum construction space required: 2" x 8"
  • Motion Sensing: No
  • Motor engineered for continuous operation: No
  • Nightlight: No
  • Product Weight (Pounds): 8.8
  • Project Pack: No
  • Rated Amps: 0.7
  • Rated Sones: 1.5
  • Rated Sones - Vertical: N/A
  • Rated Watts: 34.4
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Wall Installation: No
  • Warranty: 3 Years
  • Watts @ 0.1": 25.0
  • Watts @ 0.1" (Max CFM): 34.4
  • Watts @ 0.25": 32.3

Accessories

  • 59W
  • 68W
  • 68V
  • 70TW
  • CFT12WH
  • DH100W
  • VS66WH
  • VS68WH

Overview

UPC 78489195128
Item Long Description NuTone has taken recessed lighting a step further by incorporating light and powerful, quiet ventilation into one design. Recessed fan/lights offer versatile ventilation solutions for any room in the house. These fan/lights disappear into the ceiling and match perfectly to the trim design used by major recessed lighting manufacturers. Youd never know its a fan, and thats the point.
GTiN 00784891951282
Family Brand Name Broan-Nutone
