NUTONE 80RDB Blower,Nutone,120 V,0.
Product image thumbnail 0
Product image thumbnail 1
$133.68/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 80RDB
North Coast Part # 428115

Overview

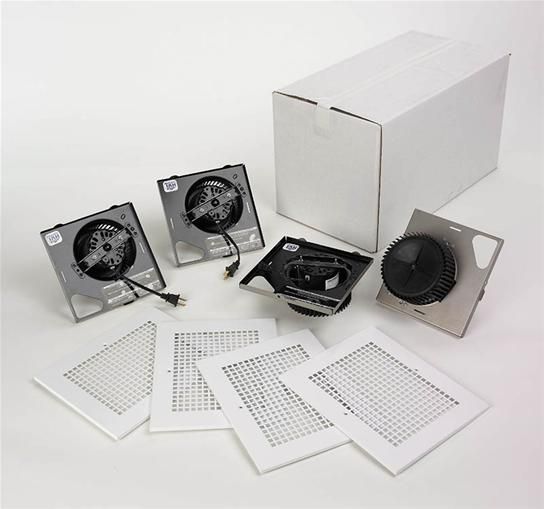

Radiation damper finish kits are specifically designed for use with Model RDA radiation/fire damper housing packs.

  • Finishing pack includes assembled motor plate, wheel and plug-in motor to complete a radiation/fire damper installation with a 2.5 Sone ventilation fan
  • 80 CFM quickly reduces humidity to prevent or eliminate fogged mirrors so residents can enjoy clear, comfortable surroundings
  • 2.5 Sone sound level will make for satisfied residents

Specifications

  • Housing Length: 8"
  • Rated Sones: 2.5
  • Rated Amps: 0.5
  • Light Bulbs Included: No
  • Rated Watts: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Wall Installation: No
  • Globe Glass Color: N/A
  • Project Pack: Yes
  • Motor engineered for continuous operation: No
  • Duct Size: 4"
  • ENERGY STARĀ® qualified: No
  • CFM @ 0.10": 80
  • Grille Diameter: N/A
  • Light Bulb Wattage: N/A
  • Watts @ 0.25": N/A
  • Nightlight: No
  • Grille Finish: Metal
  • cUL Listed: No
  • Grille Length: 9-12"
  • HVI Certified: Yes
  • Heater Wattage: N/A
  • CFM @ 0.25": N/A
  • Sones 6" to 4" reducer: N/A
  • Baths up to () Sq Ft: 75
  • Light Bulb Quantity: N/A
  • Lighting Type: No Light
  • Minimum construction space required: N/A
  • Ceiling Installation: Yes
  • Color: White
  • Housing Height: 3"
  • Humidity Sensing: No
  • Watts @ 0.1": N/A
  • Duct Direction: Horizontal
  • Grille Width: 11-5/8"
  • Housing Width: 10"
  • Watts @ 0.1" (Max CFM): N/A
  • CSA: No
  • Motion Sensing: No
  • Rated Sones - Vertical: N/A
  • ENERGY STARĀ® Most Efficient 2015: No
  • Housing Dimension LxWxH: 8" x 10" x 3"
  • Warranty: 1 Year
  • Product Weight (Pounds): 3.6

Resources

Overview

UPC 78489125811
Item Long Description Finish Pack. 80 CFM, 2.5 Sones. Blower with metal grille. To be used with Model RDA.
GTiN 00784891258114
Finish Galvanized Housing
Warranty Length 1 yr
Color White
Voltage 120 Volt
Weight 3.6 lb
Standard C/US UL,HVI 2100
Family Brand Name Broan-Nutone
Rated Sones 2.5
Light Type No Light
Housing Material Steel
Amperage 0.5 Amp
Grille Width 11-5/8 in
Housing Length 8 in
Duct Size 4 in
Grille Length 9-12 in
Housing Height 3 in
Housing Width 10 in
Nightlight No
Motor Type Plug-In, Permanently Lubricated
