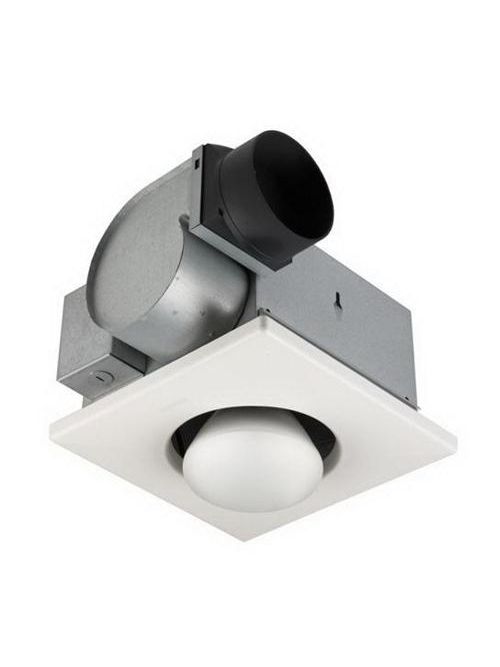

Broan 9417DN 2.5 Amp 120 Volt 70 CFM 3.5 Sones 10-1/4 Inch White Polymeric Square Grille Ventilation Fan with Lamp
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 9417DN
North Coast Part # 160704


  • 70CFM ventilation fan provides optimum performance in baths up to 65 square feet, so you can have a touch of heat just when you need it
  • 250-watt R40 or BR40 size infrared bulb (not included) is required to ensure the warmth you expect
  • 3.5 Sone sound level
  • Attractive white polymeric grille is a suitable match for any décor, no matter how many times you change the paint color
  • Compact steel housings with adjustable mounting brackets have keyhole slots that span up to 24”, making this a sure fit no matter what distance you find between joists, assisting ease of installation


  • Bathrooms up to (X) Square Feet: 65
  • Ceiling Installation: Yes
  • CFM @ 0.10": 70
  • CFM @ 0.25": N/A
  • Color: White
  • CSA: No
  • cUL Listed: No
  • Duct Direction: Horizontal
  • Duct Size: 4"
  • ENERGY STAR® certified product: No
  • ENERGY STAR® Most Efficient 2018: No
  • Globe Color: N/A
  • Grille Diameter: N/A
  • Grille Finish: White Polymeric
  • Grille Length: 10-1/4"
  • Grille Width: 10-1/4"
  • Heater Wattage: 250
  • Housing Dimension LxWxH: 8-1/8" x 8-3/8" x 6-3/8"
  • Housing Height: 6-3/8"
  • Housing Length: 8-1/8"
  • Housing Width: 8-3/8"
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: 1
  • Light Bulb Wattage: 250
  • Light Bulbs Included: No
  • Lighting Type: Infrared
  • Minimum construction space required: 2" x 8"
  • Motion Sensing: No
  • Motor engineered for continuous operation: No
  • Nightlight: No
  • Product Weight (Pounds): 6.4
  • Project Pack: No
  • Rated Amps: 2.5
  • Rated Sones: 3.5
  • Rated Sones - Vertical: N/A
  • Rated Watts: N/A
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Wall Installation: No
  • Warranty: 1 Year
  • Watts @ 0.1": N/A
  • Watts @ 0.1" (Max CFM): N/A
  • Watts @ 0.25": N/A


UPC 78489132594
Item Long Description Silent warmth and powerful ventilation. Bulb heaters are a great source for energy-saving warmth and instant comfort without ever having to touch your central thermostat. Efficient blower wheels, along with polymeric dampers that prevent backdrafts and eliminate mechanical noise, are just two basic reasons why this bulb heater/fan can be the perfect answer for a smaller bath, and the perfect touch of warmth plus ventilation.
GTiN 00784891325946
Voltage 120 Volt
Type One-Bulb, Infrared
Applications Suitable For Use In Insulated Ceilings (Type IC)
Mounting Type Ceiling
Standard UL
Wattage 300 Watt
Family Brand Name Broan-Nutone
Housing Material Steel
