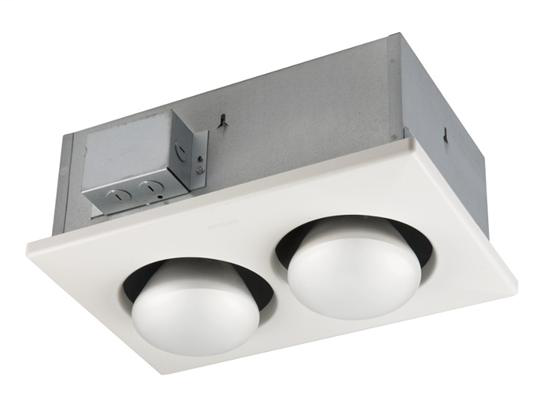

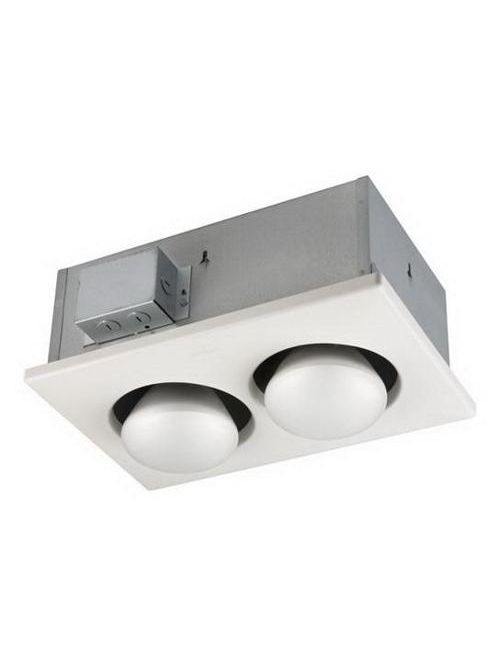

Broan 9422P 4.6 Amp 120 Volt 15-5/8 x 10-1/4 Inch Grille 500 W Heater
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 9422P
North Coast Part # 215459


  • Two 250-watt R40 or BR40 size infrared bulbs (not included) provide a total of 500 watts of heat and are required to ensure the warmth you expect
  • Attractive white polymeric grille is a suitable match for any décor, no matter how many times you change the paint color
  • Compact steel housings with adjustable mounting brackets have keyhole slots that span up to 24”, making this a sure fit no matter what distance you find between joists, assisting ease of installation


  • Bathrooms up to (X) Square Feet: N/A
  • Ceiling Installation: Yes
  • CFM @ 0.10": N/A
  • CFM @ 0.25": N/A
  • Color: White
  • CSA: No
  • cUL Listed: No
  • Duct Direction: N/A
  • Duct Size: N/A
  • ENERGY STAR® certified product: Yes
  • ENERGY STAR® Most Efficient 2018: No
  • Globe Color: N/A
  • Grille Diameter: N/A
  • Grille Finish: White Polymeric
  • Grille Length: 10-1/4"
  • Grille Width: 15-5/8"
  • Heater Wattage: 500
  • Housing Dimension LxWxH: 8-3/8" x 14-1/4" x 6"
  • Housing Height: 6"
  • Housing Length: 8-3/8"
  • Housing Width: 14-1/4"
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: 2
  • Light Bulb Wattage: 250
  • Light Bulbs Included: No
  • Lighting Type: Infrared
  • Minimum construction space required: 2" x 6"
  • Motion Sensing: No
  • Motor engineered for continuous operation: No
  • Nightlight: No
  • Product Weight (Pounds): 6.2
  • Project Pack: No
  • Rated Amps: 4.3
  • Rated Sones: N/A
  • Rated Sones - Vertical: N/A
  • Rated Watts: N/A
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Wall Installation: No
  • Warranty: 1 Year
  • Watts @ 0.1": N/A
  • Watts @ 0.1" (Max CFM): N/A
  • Watts @ 0.25": N/A


UPC 78489132648
Item Long Description Bulb heaters are a great source for energy-saving warmth and instant comfort without ever having to touch your central thermostat. Perfect for smaller spaces or rooms where you already have independent ventilation near the shower, but want some extra warmth in the dressing area.
GTiN 00784891326486
Voltage 120 Volt
Type Two-Bulb, Infrared
Applications Suitable For Use In Insulated Ceilings (Type IC)
Mounting Type Ceiling
Standard UL
Wattage 505 Watt
Family Brand Name Broan-Nutone
Housing Material Steel
Blade Dimensions Housing: 8-3/8 IN Length X 14-1/4 IN Width X 6 IN Height, Grille: 10-1/4 IN Length X 15-5/4 IN Width
