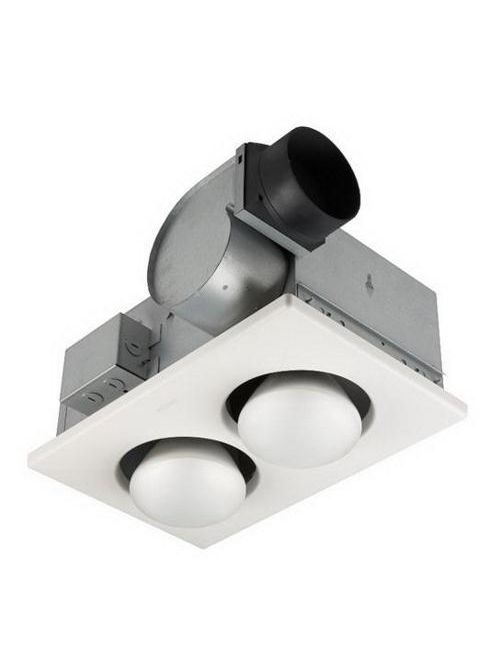

Broan 9427P 4.5 Amp 120 Volt 70 CFM 3.5 Sones 10-1/4 x 15-5/8 Inch White Polymeric Grille Ventilation Fan with Lamp
Product image thumbnail 0
Product image thumbnail 1
$121.41/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # 9427P
North Coast Part # 215920

Features

  • Two 250-watt R40 or BR40 size infrared bulbs (not included) provide a total of 500 watts of heat and are required to ensure the warmth you expect
  • Fan and heater can operate independently or together giving you the choice of warmth and ventilation you require, and complete control over your own comfort
  • Two-function control (sold separately) is required for proper operation; available through nutone
  • Attractive white polymeric grille is a suitable match for any décor, no matter how many times you change the paint color
  • Compact steel housings with adjustable mounting brackets have keyhole slots that span up to 24”, making this a sure fit no matter what distance you find between joists, assisting ease of installation

Specifications

  • Bathrooms up to (X) Square Feet: 65
  • Ceiling Installation: Yes
  • CFM @ 0.10": 70
  • CFM @ 0.25": N/A
  • Color: White
  • CSA: No
  • cUL Listed: No
  • Duct Direction: Horizontal
  • Duct Size: 4"
  • ENERGY STAR® certified product: No
  • ENERGY STAR® Most Efficient 2018: No
  • Globe Color: N/A
  • Grille Diameter: N/A
  • Grille Finish: White Polymeric
  • Grille Length: 10-1/4"
  • Grille Width: 15-5/8"
  • Heater Wattage: 500
  • Housing Dimension LxWxH: 8-3/8" x 14-1/4" x 6-3/8"
  • Housing Height: 6-3/8"
  • Housing Length: 8-3/8"
  • Housing Width: 14-1/4"
  • Humidity Sensing: No
  • HVI Certified: Yes
  • Light Bulb Quantity: 2
  • Light Bulb Wattage: 250
  • Light Bulbs Included: No
  • Lighting Type: Infrared
  • Minimum construction space required: 2" x 8"
  • Motion Sensing: No
  • Motor engineered for continuous operation: No
  • Nightlight: No
  • Product Weight (Pounds): 7.6
  • Project Pack: No
  • Rated Amps: 4.5
  • Rated Sones: 3.5
  • Rated Sones - Vertical: N/A
  • Rated Watts: N/A
  • Sones 6" to 4" reducer: N/A
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Wall Installation: No
  • Warranty: 1 Year
  • Watts @ 0.1": N/A
  • Watts @ 0.1" (Max CFM): N/A
  • Watts @ 0.25": N/A

Overview

UPC 78489132649
GTiN 00784891326493
Voltage 120 Volt
Type Two-Bulb, Infrared
Applications Suitable For Use In Insulated Ceilings (Type IC)
Mounting Type Ceiling
Standard UL
Wattage 545 Watt
Family Brand Name Broan-Nutone
Housing Material Steel
