NUTONE HD50RDB Finish Pack. 50 CFM,
$133.03/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Nutone
Mfg Catalog # HD50RDB
North Coast Part # 428116

Overview

Radiation damper finish kits are specifically designed for use with Model RDA radiation/fire damper housing packs.

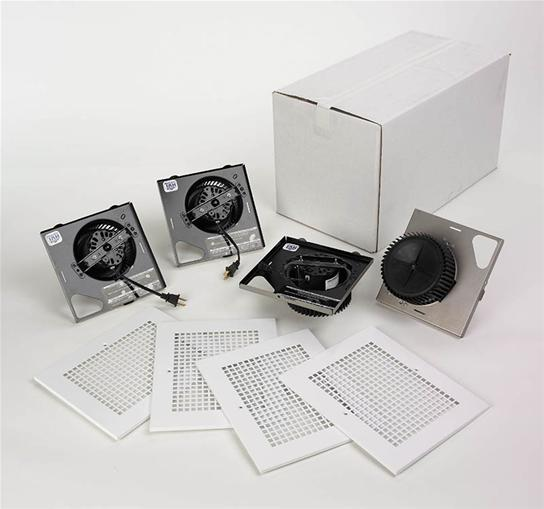

  • Finishing pack includes assembled motor plate, wheel and plug-in motor to complete a radiation/fire damper installation with a 1.5 Sone ventilation fan
  • 50 CFM quickly reduces humidity to prevent or eliminate fogged mirrors so residents can enjoy clear, comfortable surroundings
  • 1.5 Sone sound level will make for satisfied residents
  • Totally enclosed motor designed for continuous operation and minimal maintenance
  • Rugged metal fan grille for added durability means breakage won't be a concern

Specifications

  • Rated Watts: N/A
  • Duct Size: 4"
  • Nightlight: No
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
  • Motion Sensing: No
  • Rated Sones: 1.5
  • Watts @ 0.1": N/A
  • cUL Listed: No
  • Ceiling Installation: Yes
  • Color: White
  • Housing Height: 3"
  • Warranty: 1 Year
  • HVI Certified: Yes
  • Housing Dimension LxWxH: 8" x 10" x 3"
  • Minimum construction space required: N/A
  • Project Pack: Yes
  • CFM @ 0.25": N/A
  • Watts @ 0.1" (Max CFM): N/A
  • Motor engineered for continuous operation: Yes
  • Wall Installation: No
  • Light Bulb Wattage: N/A
  • Rated Sones - Vertical: N/A
  • Heater Wattage: N/A
  • Housing Length: 8"
  • Watts @ 0.25": N/A
  • ENERGY STARĀ® qualified: Yes
  • Grille Finish: Metal
  • CFM @ 0.10": 50
  • Grille Width: 11-5/8"
  • Light Bulbs Included: No
  • Grille Length: 9-12"
  • Product Weight (Pounds): 3.5
  • Housing Width: 10"
  • Humidity Sensing: No
  • Light Bulb Quantity: N/A
  • Baths up to () Sq Ft: 45
  • CSA: No
  • Duct Direction: Horizontal
  • Globe Glass Color: N/A
  • Rated Amps: 0.4
  • Lighting Type: No Light
  • ENERGY STARĀ® Most Efficient 2015: No
  • Grille Diameter: N/A
  • Sones 6" to 4" reducer: N/A

Resources

Overview

UPC 78489125813
GTiN 00784891258138
Warranty Length 1 yr
Color White
Weight 3.5 lb
Family Brand Name BROAN-NUTONE
Rated Sones 1.5
Light Type No Light
Amperage 0.4 Amp
Grille Width 11-5/8 in
Housing Length 8 in
Duct Size 4 in
Grille Length 9-12 in
Housing Height 3 in
Housing Width 10 in
Nightlight No
